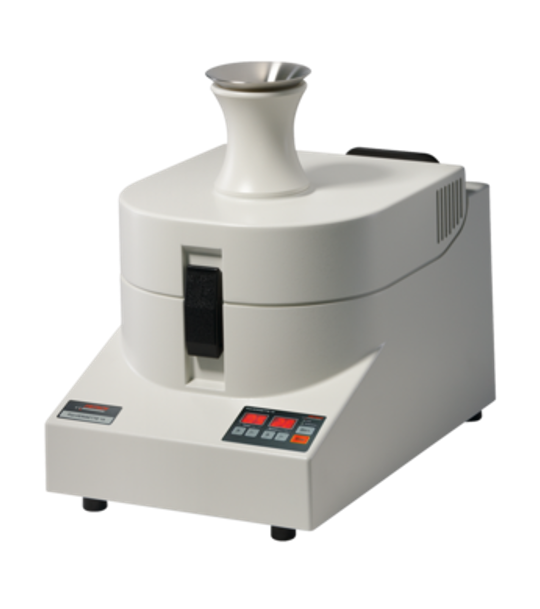

Variable-Speed Rotor Mill PULVERISETTE 14 Classic Line. FRITSCH, Germany

Inside the Variable Speed Rotor Mill PULVERISETTE 14 classic line, the sample is comminuted by impact on the ribs of the rotor rotating at a high speed and additionally sheared between the rotor-teeth and between the utilized sieve ring.

• Rapid sample throughput due to high-speed grinding
• Max. feed size 10 mm, max. throughput 5 l/h
• Final fineness d50 < 40 μm, sieve rings 0.08 – 6 mm
• Ideal for minimal sample quantities < 10 ml
• Simple, tool-free changing of rotor, collecting vessel, sieve ring and labyrinth seal
• Simple, contamination-free cleaning and assembly of all grinding parts outside the instrument
• Heavy-metal and iron-free grinding and sample preparation according to RoHS
• Comminution of difficult-to-mill and temperature-sensitive samples – also cryogenic
• Variable speed settings between 6,000 and 20,000 rpm
• Automatic speed regulation for constant milling
• Efficient cooling of the grinding chamber due to extremely high airflow
• Highly durable low-wear rotor made of stainless steel
• Grinding chamber made of stainless steel or PTFE-coated with practical quick-clamping lock
• Grinding parts made of stainless steel, pure titanium and TiN-coated
• Maintenance-free three-phase motor with regulated rotor speed 6,000 – 20,000 rpm
• High speed stability even under full load
• Wear-free labyrinth seal between the grinding chamber and drive motor
• Removable dust filter for convenient cleaning
• Ergonomic operating panel with membrane keyboard and timer
• Microcontroller with integrated regulation function for Vibratory Feeder
• Optimal for fine comminution after pre-crushing with the FRITSCH Cutting Mills
• Temperature gentle fine grinding with the FRITSCH Cyclone separator
• Extensive accessories available – easing your laboratory tasks

More powerful frequency converter

With a more powerful frequency converter, the modified Speed Rotor Mill PULVERISETTE 14 classic line ensures that the motor output is precisely matched to the grinding material.

Your advantage: faster sample feeding, a constant rotational speed and a higher throughput. The well-designed LED display in the ergonomic operating panel with membrane keyboard, displays the speed and motor load and alerts in the event of reaching the temperature limit and overload.

Ingenious air routing

Available only from FRITSCH: The ingenious air routing of the PULVERISETTE 14 classic line ensures a constant airflow to cool the rotor, all motor components and the grinding material in the collecting vessel. At the same time, a large fan blows the cooling air into the instrument through a foam particle filter to create positive pressure that prevents the penetration of dirt particles from the ambient air.

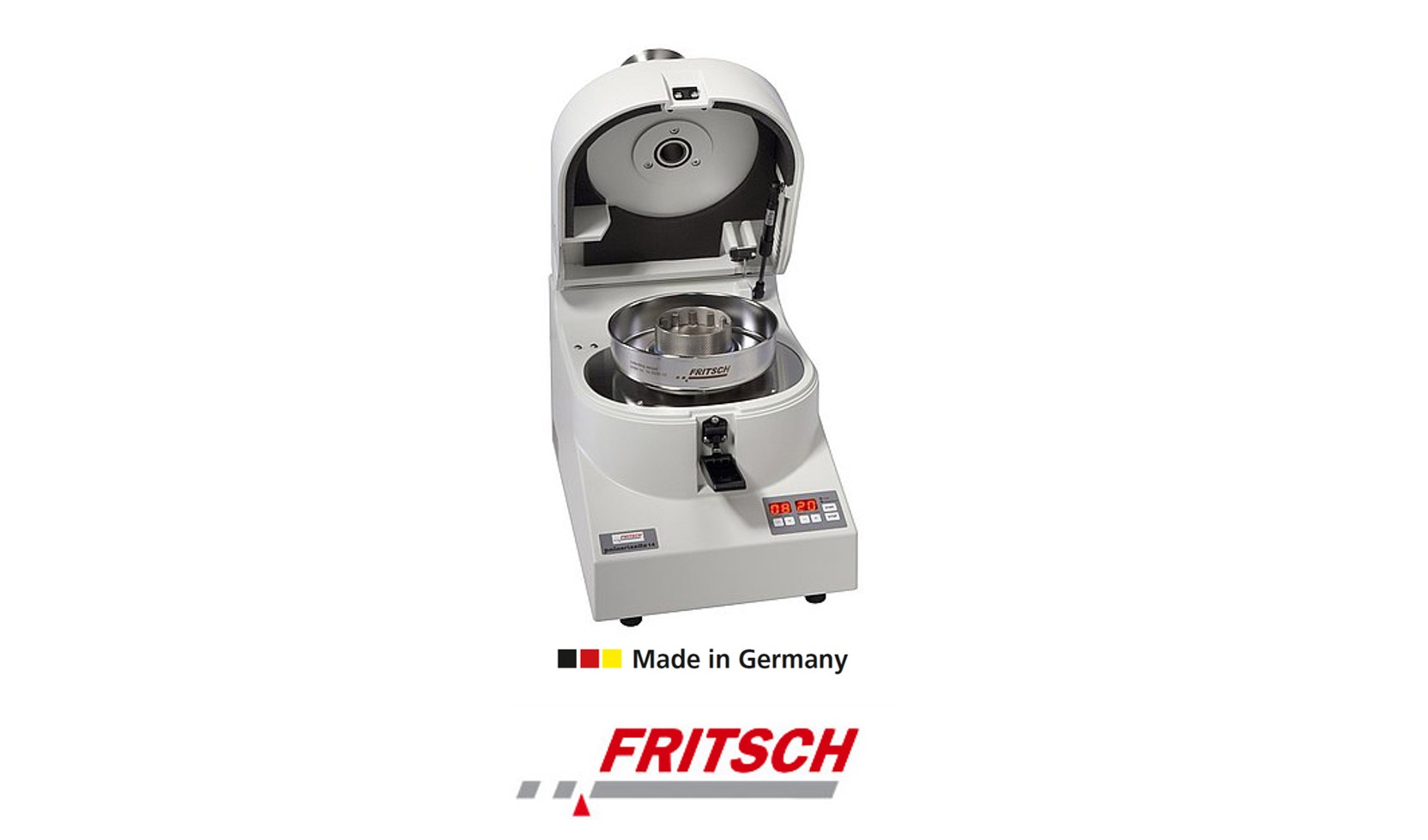

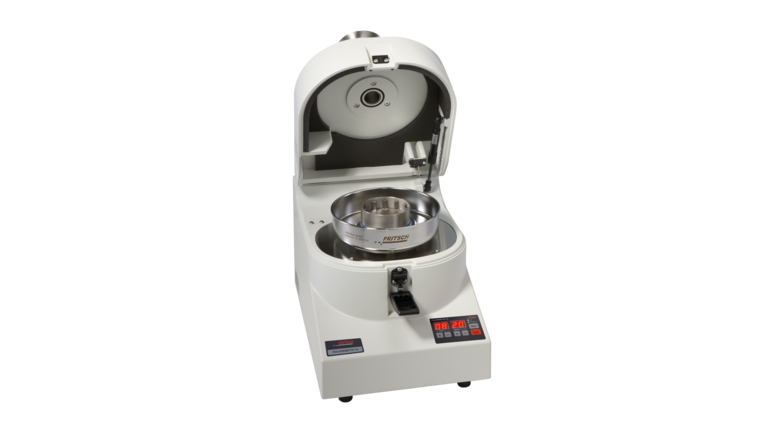

Fast exchange of all grinding tools – easy cleaning

All grinding parts can be removed without tools with just a few motions – for quickly exchanging all grinding parts and for cleaning them outside of the instrument. The especially smooth surface of the stainless steel impact rotors simplifies a thorough cleaning – fast and easy! The wear-free labyrinth seal between the grinding chamber and the motor offers secure protection against contamination of the instrument.

NEW: temperature gentle fine grinding with the FRITSCH Cyclone separators

The combination of the FRITSCH Variable Speed Rotor Mill PULVERISETTE 14 classic line with the FRITSCH Cyclone separators is ideal for ultra-fine grinding of temperature-sensitive samples like powder coatings and plastic samples or for smooth pre-crushing and fine grinding of hard-brittle to soft, fatty or samples with residual moisture. The powerful air vortex within the FRITSCH Cyclone separators in combination with the efficient air cooling of the mill, cools the sample during grinding and draws the sample directly into the screwed on glass sample bottle. Thereby the fine dust is retained in the Cyclone separators by the ultra-fine HEPA dust filter and prevents the clogging of the sieve ring.

The result: a particularly fast and efficient grinding with minimized thermal load at a significantly higher throughput – and a particularly simple contamination-free cleaning.

Two models are available for your application needs: High performance Cyclone separator and standard Cyclone separator.

Configure your Variable Speed Rotor Mill PULVERISETTE 14 classic line exactly to your specific application

The Centrifugal Mill PULVERISETTE 14 classic line includes a collecting vessel and lid. In order to operate the mill, you must also order a rotor, a sieve ring, an impact bar or a pin insert – allowing you to select your grinding tools according to your specific application! To ensure this, an extensive accessory programme for the PULVERISETTE 14 classic line is available with rotors and sieve rings in various designs and materials, as well as additional accessories. Choose exactly what you need!

For grinding large quantities we recommend the special conversion kit. This allows the comminution of sample quantities of up to 1 litre in a single step without the need to open the grinding chamber and empty the collecting pan during the process.

Combine your PULVERISETTE 14 classic line with the FRITSCH Vibratory Feeder LABORETTE 24 to ensure continuous feeding of the sample during the entire grinding process, even of smallest quantities. Due to a direct connection, the mill automatically matches the sample feeding to its load
