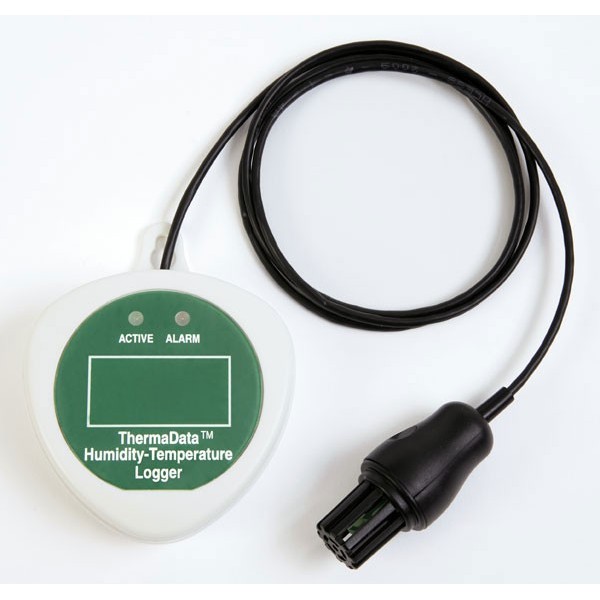

The HTBF humidity logger ThermaData® logger is a portable blind humidity logger that measures and record both relative humidity (% RH) and temperature over the range of -20 to 85°C and 0 to 100% RH.
At programmable intervals, the HTB humidity logger will record simultaneously both temperature and humidity, recording up to a maximum of 16,000 readings (8,000 humidity and 8,000 temperature). The ThermaData® HTBF blind humidity logger includes internal humidity and temperature sensors.
Each humidity logger incorporates a red and green LED, the flashing green LED indicates that the logger is active/logging and the flashing red LED indicates that your customised pre-set alarms have been exceeded. The humidity and temperature ThermaData loggers are suitable for a diverse range of applications which include HVAC climate monitoring, QA control or storage areas and many more. Please note: when ordering loggers it is necessary to order at least one ThermaData® logger cradle, which includes the software.
Range -20 to 85°C, 0 to 100%rh
Resolution 0.1°C, 0.1rh
Accuracy ±0.5°C (0 to +45°C) ±2%rh @ +25°C (10 to 90 %rh)
±1°C (-20 to +70°C)
±1.5°C (+70 to +85°C)
Hysteresis n/a, ±1%rh
Sensor type silicone bandgap, capacitance polymer
Memory 2 x 8000 readings
Sample rate 0.1 to 255 minutes
Battery 3.6 volt half AA lithium
Battery life 2 years minimum
Display 10mm LED toggles every 6 seconds / 2 LEDs
Dimensions 76 x 23mm
Weight 80 grams
