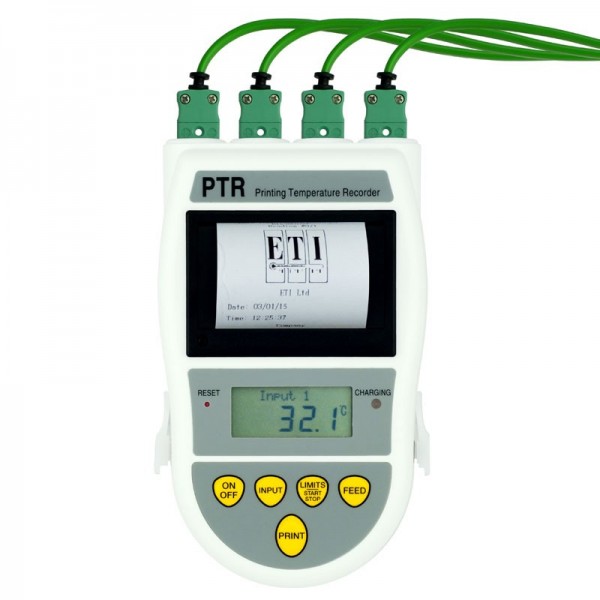

The four channel PTR (Printing Temperature Recorder), printing thermometer has been specifically designed to provide a cost effective way of automatically measuring and recording temperature and time at regular preset intervals. The PTR can save you time and money as it can log temperatures unsupervised overnight, weekends or during the normal working day.
The PTR is housed in a robust ABS case and incorporates an easy to use keypad. The print functions can be operated from the keypad on the PTR to provide a printed record of the temperature measurements and the real time they were taken.
The PTR printing thermometer features an easy to read, LCD display with low battery indication, displaying temperature over the range of -100 to 299.9 °C with a 0.1 °C resolution, auto-ranging to 1 °C over the range of 300 to 1372 °C (type K thermocouple).
The user, via the compatible software provided with the PTR, can programme high and low alarms for each of the four input channels, each channel can also be personalised with its own label (maximum 12 characters) i.e. machine 1, machine 2 etc.
The software also allows the user to personalise the printed ticket with a company name, address and logo.
The PTR is priced excluding probe.
| Range type K t/c | -100°C to 1372°C |
| Range type T t/c | -100°C to 400°C |
| Resolution °C | 0.1 °C to 299.9 °C thereafter 1 °C |
| Accuracy | ±0.4 °C ± 0.1 % (instrument only) |
| Memory | 32000 or 4 x 8000 temperature readings |
| Sample rate | 0.1 to 255 minutes |
| Battery | Ni-MH 3.6 volt Rechargeable |
| Battery life | approx 500 prints |
| Sensor type | K or T thermocouple |
| Display | 12.7 mm LCD |
| Dimensions | 54 x 110 x 183 mm |
| Weight | 629 grams |
