תיאור
Fully automatic operation
High purity pyrogen free output
Low temperature distillate
Operates from any raw water supply
Reservoir level control
Simple conversion to pre-treated feed
Supplied with wall mounting bracket
Safety features allow unattended operation
Simple to clean

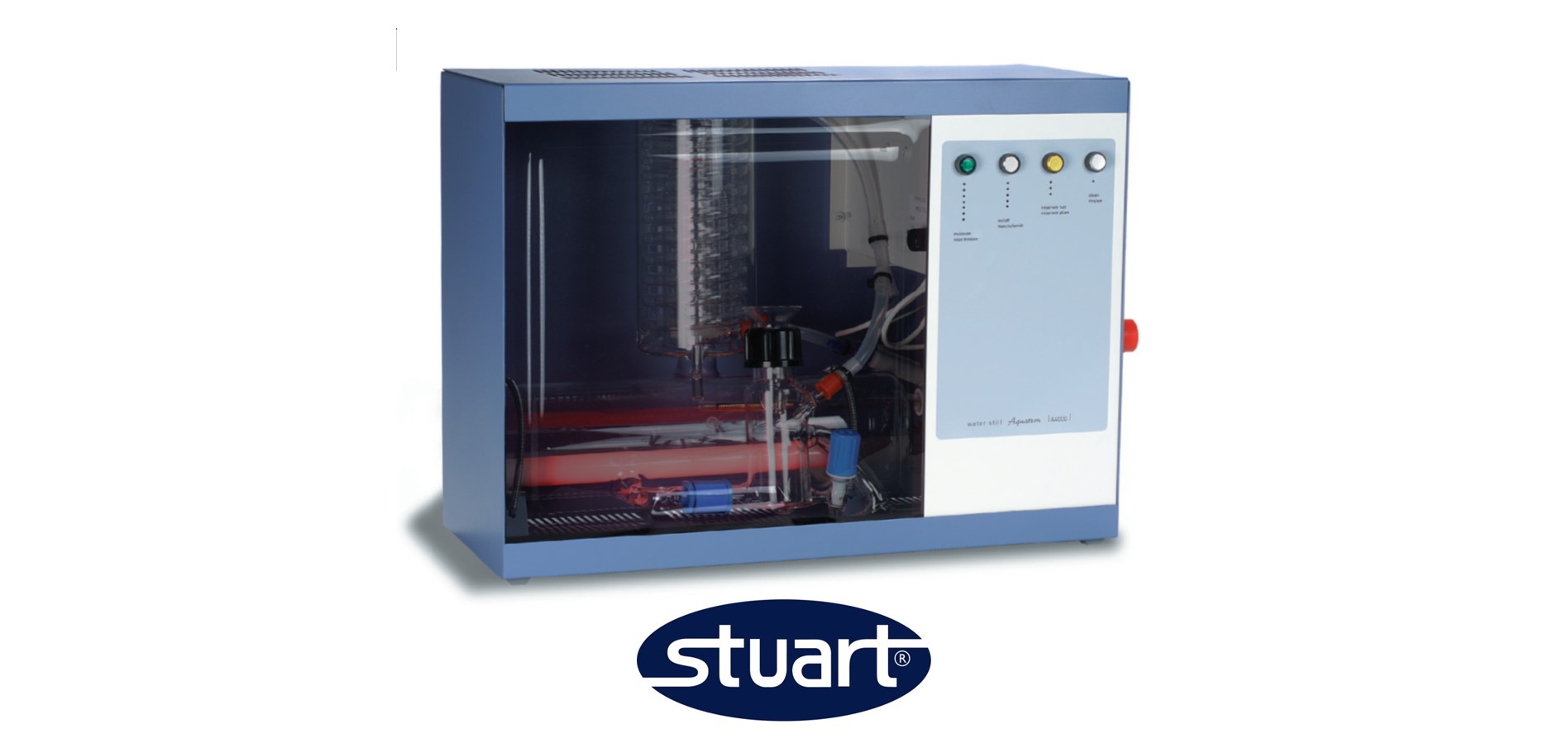

Produces 4 litres/hour double distilled water for higher purity levels. The first stage distillation is carried out in a glassware set mounted at the front of the cabinet allowing easy access for descaling. The distilled water is fed to a second set of glassware mounted at the rear and distilled a second time. The rear glassware is fitted with a level sensor to ensure the heater is only activated when there is sufficient water in the boiler
| Output, lhr | 4, double |
| pH | 5.0 – 6.5 |
| Conductivity, µ Scm-1 | 1.0 – 1.5 |
| Resistivity, mOhm-cm | 0.7 – 1.0 |
| Temperature, °:C | 25 – 35 |
| Pyrogen content* | Pyrogen free |
| Water supply | 2 L/min, 3-100 psi, (20-700kPa) |
| Electrical supply | 220 or 240V, 50-60Hz, single phase |
| Max. power, kW | 6 |
| Dimensions (wxdxh), mm | 550x410x410 |
