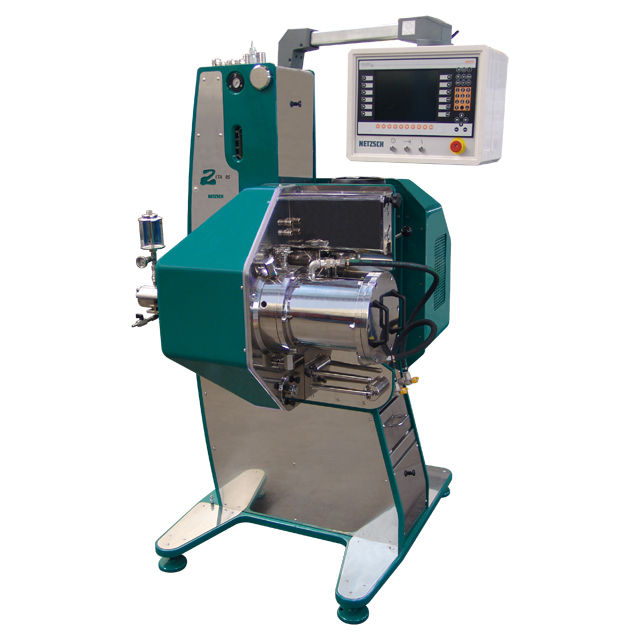

The nano mill ZETA® RS is the next development of the worldwide known circulation mill system ZETA® type LMZ. Its field of application starts where the other agitator bead mill system ZETA® ends. The highly efficient centrifugal separation system enables the use of smallest grinding media from a diameter of 30 – 300 µm in reliable continuous operation. It is specially designed for wet grinding and dispersing processes especially "gentle dispersing" in the nanometer range. Working with the machines is a pleasure due to its easy operation.
The agitator bead mill ZETA® RS is equipped with a swiveling grinding unit and lifting device with multiple positions for easy emptying, filling and cleaning and a horizontal working position.
• Four sizes with 2 l, 4 l, 10 l and 25 l grinding chamber volume
• Peg grinding system with small length/diameter portion
• ATEX-conform design in ergonomic design
• Highly efficient dynamic centrifugal separation system
• Use of smallest grinding media from 50 to 300 µm
• Integrated grinding media collecting tray for loss-free emptying
• Easy handling due to swiveling and carriage-type grinding chamber
• Control of the mill drive and feeding pump via frequency inverter
• Flow meter to control the product flow
• Pressure control by contact manometer
• Measurement of the product inlet and outlet temperature, optionally also available for cooling water temperature
• Flow measurement of the chamber cooling
• Grinding chamber design of stainless steel as standard. Wear and corrosion resistant designs for metal free processing are available in the materials NETZSCH-CERAM C / NETZSCH-CERAM N, NETZSCH-CERAM Z, NElast
