Specification BIB-100:
Optical System: Infinity corrected system, field diameter 22 mm
Viewing Head: Bin- or Trinocular Head, 30° inclined, 360° rotatable, Interpupillary Distance 48 – 75 mm
Nosepiece: Quintuple revolving nosepiece
Eyepiece: High-point, Extra Wide Field Eyepiece EW 10X /22 mm
Objectives: LWD Infinity corrected Plan Achromat Objective 4X/0,1 WD 2.6 mm
LWD Infinity corrected Plan Achromat Objective 40X/0,8 WD 18 mm
Infinity corrected Plan Achromat Phase Objective 10X/0,25 WD 10 mm
Infinity corrected Plan Achromat Phase Objective 20X/0,4 WD 5.1 mm
Condenser: ELWD condenser NA 0.3. LWD 72 mm (without condenser 150 mm)
Centering Centering Telescope 30 mm diam.
Telescope Phase Annulus 10X -20X
Phase Annulus Plate
Stage: Plain Stage 160 x 250 mm, Glass Insert Auxilary Stage 70 x 180 mm
Attachable Mechanical Ruler
Focusing: Coaxial coarse and fine adjustment. Vertical objective movement, Coarses stroke 37.7 mm per rotation,
Fine Stroke: 0,2 mm per Rotation
Filter: Diameter 45 mm, Blue, Green and Ground Glass
Illumination: 6V 30W Halogen lamp, light intensity adjustable.
Body / power: Innovative stand structure with inbuilt power supply
Supplied with: Dust cover, immersion oil, 1 spare halogen bulb and instruction manual
Code Description

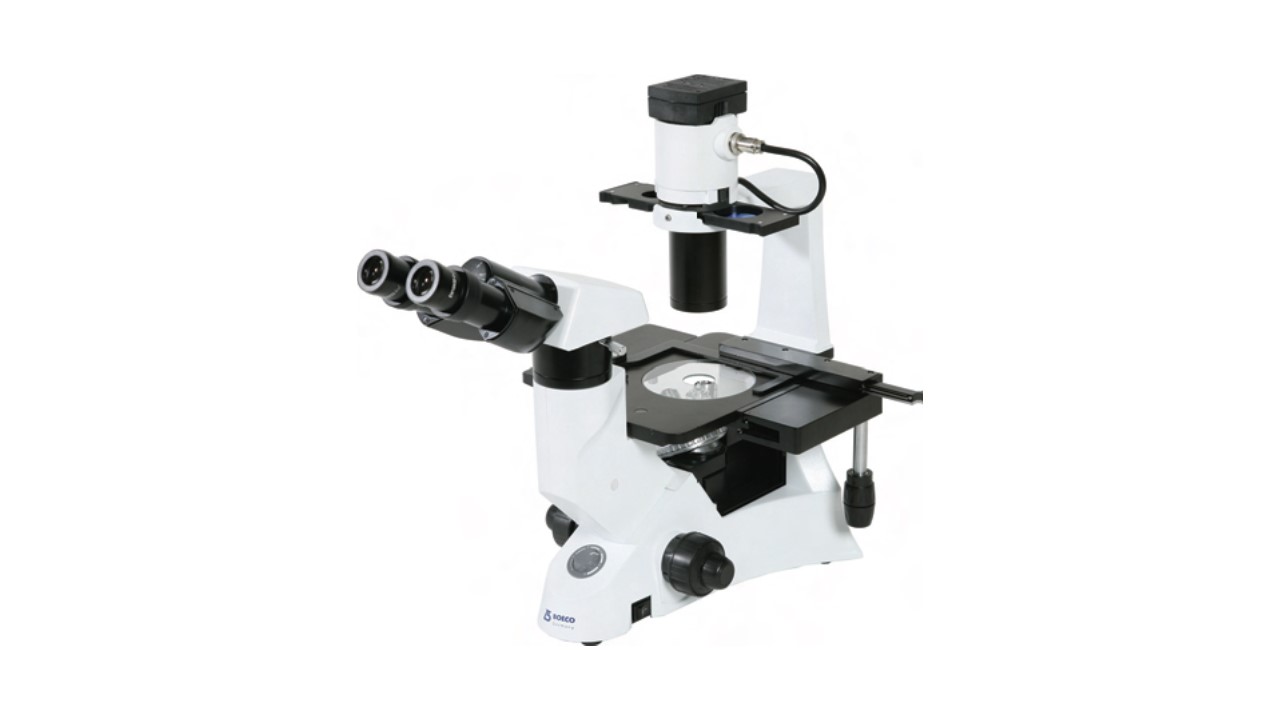

BOE 5000.900 Model BIB-100, 220V 50/60 Hz
