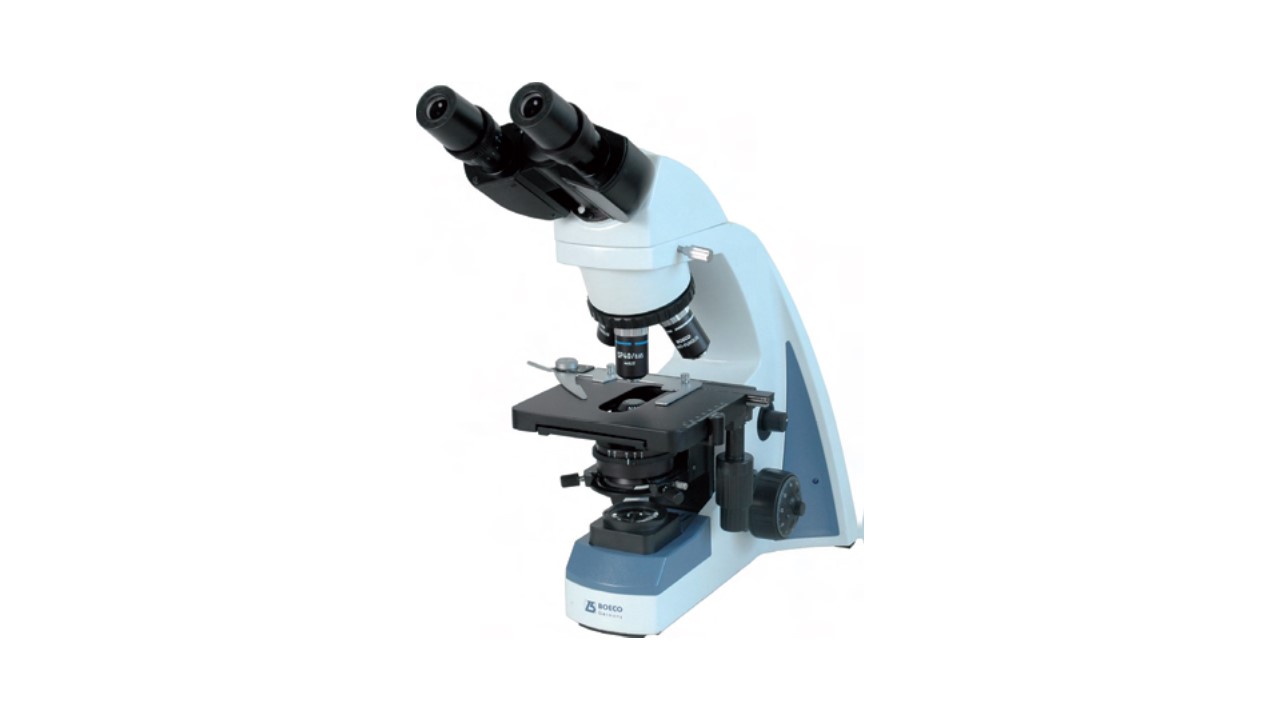

Specification BM-300/I/SP:
Optical Head: Seidentopf Binocular Head, 30° inclined, 360° rotatable, with Infinity corrected optical system interpupillary Distance 48 – 75 mm
Nosepiece: Backward quadruple revolving nosepiece
Eyepiece: Pair Eyepiece WF 10X /18 mm Widefield
Objectives: BOECO Anti Fungus Infinitive Semi-plan Achromat Objectives F=180 mm: 4x, 10x, 40x (S), 100x (S) (Oil)
Stage: Double layer mechanical specimen stage. 140 x 140 mm Travel area 75 x 50 mm, Right hand stage handle
Focusing: Low position, coaxial coarse and calibrated fine focus control, with graduation reading 2 microns per division. Total focusing range 20 mm., Safety autofocus stop unit.
Condenser: Sliding-in centerable Abbe Bright field condenser, n.A. 1,25, Integrated Iris diaphragm and filter tray. with rack & pinion height adjustment
Illumination: S-LED, light intensity adjustable.
Body /power: Sturdy body with supportive rubber and inbuilt power supply, 110-220V, 50/60Hz
Supplied with: Dust cover, green filter, immersion oil, instruction manual
Dimension: 200(W) x 397(D) x 422(H) mm
Weight: Netweight 7,5 kgs, Grossweight 9,2 kg
Packing: Two styrofoam shelves in a cardboard box,
335(W)x330(D)x530(H) mm
Code Description
BOE 3000.200 Model BM-300/I/SP, Euro plug
