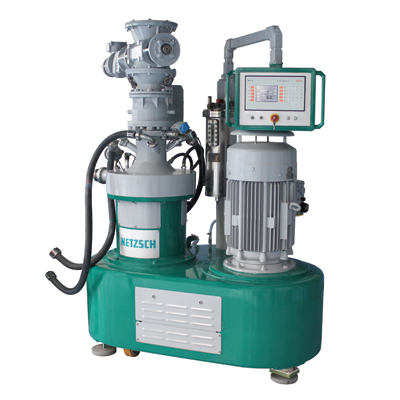

The Ψ-MIX® inline disperser combines a new dispersion method, in which the solid components are wetted on a large liquid surface, with emission- free, dust-free inline operation. The combination of vacuum dispersion, shearing and pressure wetting results in homogeneous, fine dispersions with very reproducible quality – all at high efficiency levels in a controlled process.
Because the machine is suitable for processing both low- and high-viscosity suspensions, it covers the complete spectrum of applications for dispersion technology. In addition, the design of the mixing zone makes it possible to process temperature-sensitive or dilatant materials.
Compared to conventional rotor-stator systems, this machine uses considerably less energy to disperse your products. The Ψ-MIX® is also easy to integrate into fully-automatic production lines for the manufacture of large batches and is particularly well suited and specially adapted for emission-free and explosion-proof operation.
• Enclosed, emission-free dispersion system in batch operation for fast wetting (inline) of powder in liquids
• Homogeneous, high-quality pre-dispersion
• Dosing and spraying of the solids via rotary valve and conditioning head
• Charging from Big-Bag, bagged goods or silo
• Suitable for potentially explosive areas
• Atmosphere barrier prevents instantaneous ignition
• Largely insensitive to foreign substances such as packaging residue
• Problem-free large-diameter inlet for solids
• No introduction of outside air
• Overload prevented through controlled dosing of pigment
• High solids content possible
• No flooding of liquid into the dry area
• Suitable for a wide range of viscosities
• Minimal temperature difference and product heating
Options
• coolable processing zone
• quick-cleaning unit
