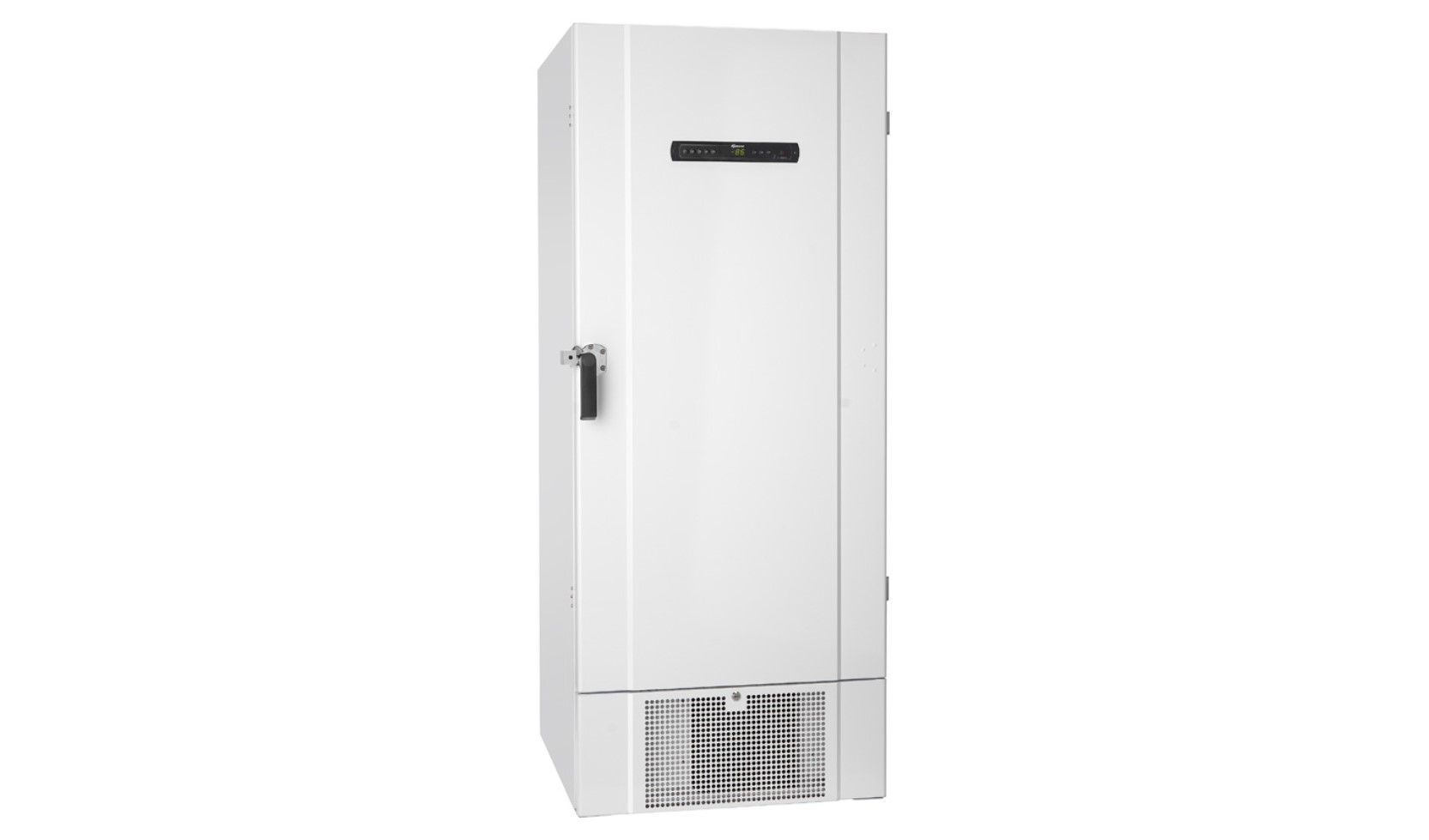

The BioUltra UL570 is an ultra low temperature freezer that operates safely at -86°C. By utilising high-capacity components, cascade refrigeration system, latest generation VIP-technology and insulated inner doors, the BioUltra is able to maintain safe and stable interior conditions when operating at -86°C.
Customisable layout allows users to adapt the cabinet to current storage requirement, 5 stainless steel perforated shelves are included as standard.
The BioUltra UL570 holds up to 384 2”/50 mm boxes , 192 3”/75 mm boxes or 192 4”/100 mm boxes.
Insulated inner doors: Efficient inner doors ensure safe operation even with the outer door left ajar. The two independently working inner doors ensure that items can be accessed with least possible affect on the items stored. The inner doors are detachable for easy cleaning and defrosting.
Access port: 24.5 mm port for ease of access, e.g. sensors for external temperature surveillance.
E-sensor: Extra sensor and reference container for providing a temperature reference within the storage compartment.

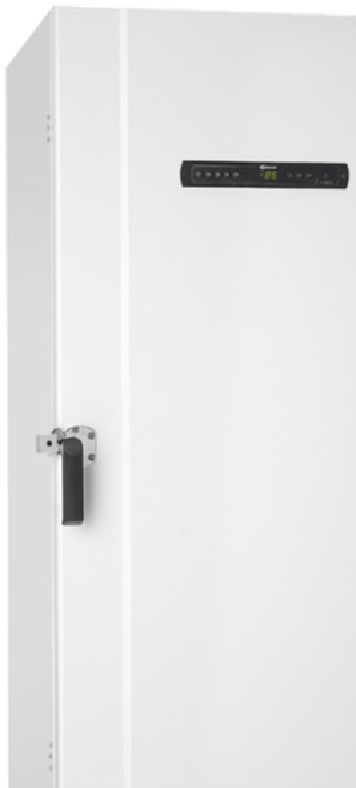

Access to the cabinet : An ergonomically correct and easy to use handle, ensures safe access to the cabinets interior.
Leveling castors : All BioUltra cabinets are equipped with multifunctional leveling castors. These allow for easy positioning, with the added stationary stability of legs once deployed.
Cascade: The Gram BioLine cascade refrigeration system is specifically designed for ultra low temperature operation. Ensuring high ef ficiency, per formance and durability. Additionally, an access panel makes for easy access to heat exchanger and dr y filter.
Technical specifications: BioUltra UL570
Temperature range: -90°C/-60 ºC
Ambient temperature range: 10/35 ºC
Control Unit: Gram BioLine MPC 4.6, voltage-free contact, E-sensor, acoustic temperature alarms that can be programmed individually, alarm recording, hi/low temperature and calibration function.
Material interior: Lacquered steel, inside of doors and bottom panel in stainless steel
Material exterior: Lacquered steel
External dimensions mm (W x D x H): 856 (width without handle and hinges 800 mm) x 979 x 1986/1996
Gross volume: 570 litres/20.1 cubic feet
Modules for shelves: Adjustable with 12,5 mm increments 5 Stainless steel perforated shelves come as standard
Rack capacity: 2”/50mm boxes: 384 boxes (using 4×4 racks) 38.400 vials (using 4×4 racks)
Rack capacity: 3”/75mm boxes: 192 boxes (using 3×4 racks) 19.200 vials (using 3×4 racks)
Rack capacity: 4”/100mm boxes: 192 boxes (using 2×4 racks) 19.200 vials (using 2×4 racks)
Insulation: 70 mm (HFC and CFC free cyclopentane), Vacuum insulated panels
Refrigerant: R404 / R508 (R290)
Sensors used: PT-1000
Base: Levelling castors
Connection: 230 V, 50 Hz, 16 Amp
Power consumption*: 13,5 kWh/24h
Refrigeration system: Static cascade refrigeration system
* Measured with empty cabinet, setpoint of -80°C with an ambient temperature of +20°C
