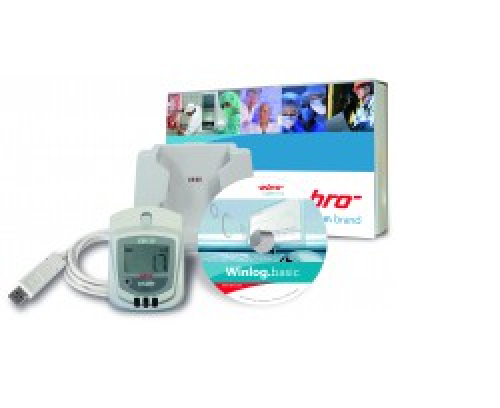

EBI 20-TH1-Set consisting of: Logger, interface and software
Product Description
With a memory capacity of 40,000 measurements the easy to use EBI 20 data loggers are suitable for
the continuous documentation and monitoring of temperature and humidity. All EBI 20 data loggers
are delivered with a factory calibration certificate and a user replaceable battery
The data loggers are particularly attractive because of their excellent price-performance ratio
Applications: • Transport monitoring • Storage monitoring • Process monitoring
- Excellent price/performance ratio
- Automatic recording of temperature data
- No network connection require
- Programming and evaluation with PC
- LED alarm
- Min/max values on display
- Factory calibration certificate
| Measuring range | -30 °C…+70 °C |
|---|---|
| Accuracy | Humidity: ±3 % (at 10…90% rel. humidity) Temperature: ±0.5 °C (-20 °C to +40 °C) ±0.8 °C for the remaining measuring range |
| Resolution | 0,1 °C 0,1% rF |
| Operating Temperature | -30 °C…+60 °C |
| Memory | 40.000 measurement value |
| Sensor | NTC |
| Sample Rate | 1min…24h |
| IP Rating | IP 52 |
| Battery | 3V Lithium (CR2450), exchangeable by user |
| Battery lifetime | approx. 1 year |
| Dimensions | 69 x 48 x 22 mm |
| Weight | approx. 45 g |
| Certificate | Factory calibration certificate |
