תיאור
- Designed for determination of friction sensitivity of energetic materials in a wide range of friction loads (from 0.1 N to 360 N) in accordance with the BAM procedure
- Robust stainless steel design

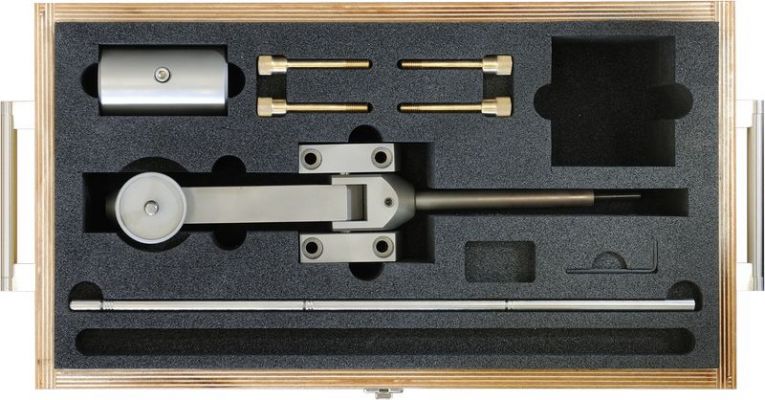

- Two interchangeable loading arms are available – for sensitivity testing of highly
- sensitive explosives as well as less sensitive explosives at one apparatus
APPLICATION

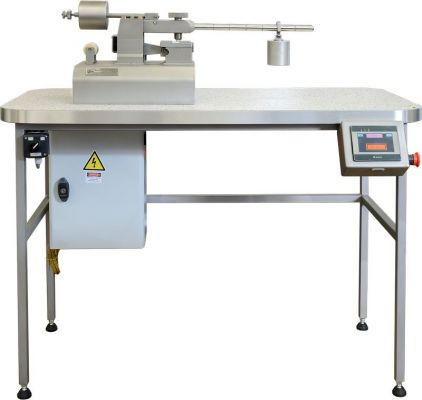

The friction sensitivity of a tested substance is determine in accordance with the BAM procedure. OZM Research™ has designed the FSKM-10 with a unique interchangeable loading arm accoutrement: a light loading arm designed for testing highly sensitive primary explosives and pyrotechnics and a standard loading arm designed for testing high explosives, less sensitive explosives and other substances.
ADVANTAGES & FEATURES
- Complete stainless-steel construction
- Unique interchangeable whole loading arm design
- Standard 6-Position Loading Arm accompanied by two sets of companion weights allowing for loads from 0.5 N to 360 N
- Light 3-Position Loading Arm–specially designed for testing highly sensitive substances–accompanied by two sets of companion weights allowing for loads from 0.1 N to 60 N
- Protective Shield to guard personnel against potential fragments of porcelain plate or peg
- Digitally controlled step motor for the high precision movement of the porcelain plates
- Work table covered by an electrostatic conductive surface

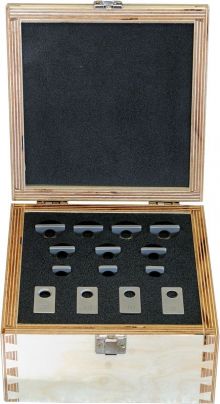

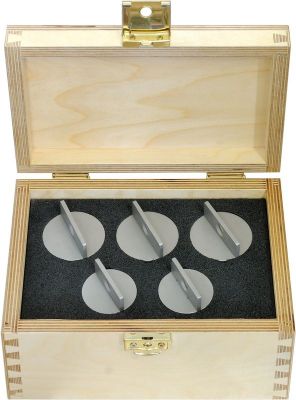

- Wide range of accessories available
- Premium quality consumables at cost effective prices
COMPLIANCE
- UN Recommendation on the Transport of Dangerous Goods, Manual of Tests and Criteria – Test 3 (a) (ii)
- EN 13631-4: 2002 Explosives for Civil Uses – High Explosives – Part 4: Determination of Sensitiveness to Impact of Explosives
- European Commission Directive 92/69/EEC, Method A14: Explosive Properties
- GB/T 21567-2008: Dangerous goods – Test method for impact sensitivity of explosives substance
- „further Standards Compliance upon request“
