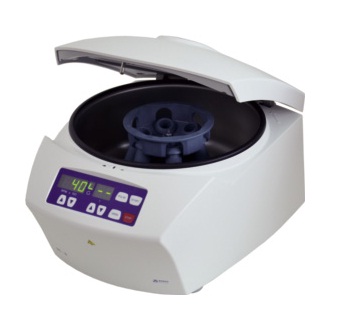

The BOECO SC-6 is a small centrifuge with a swing-out rotor especially
designed for use in clinical laboratories and medical practices.
It accepts common blood or urine tubes up to a volume of 15 ml and
accelerates them to a maximum speed of 4,000 rpm–1
The BOECO SC-6 delivers optimal separation results and a horizontal layer
of the separating gel that is identical to that achieved with a large centrifuge.
Samples are therefore optimally prepared for analysis.
Controls and displays:
During centrifugation the actual values of the parameters are indicated
The centrifuge’s speed and running time can be variably adjusted for different applications.
Speed display in RPM x 100, input in steps of 100
Time t/min: 1 – 99 min, continuous operation
Pulse key: For short centrifugation operations
Open lid key
Safety:
Lid locking and holding device
Centrifuge chamber of stainless steel
Emergency lid lock release
Lid closure of metal
Imbalance switch-off
Flexible motor bearings
Design:
Smooth plastic housing, easy to clean
Metal lid
Stainless steel centrifuging chamber, deep-drawn and seamless
The SC-6 conforms to safety regulations such as IEC 61010, or the
CE mark and all relevant EC standards and DIN norms and has been manufactured under ISO 9001:2008
Technical details:
Max RPM (speed) / RCF: 4,000 rpm / 2.254 RCF
Noise level: ≤ 50 dB(A)
Dimensions in mm (HxWxD): 239 x 326 x 389
Net weight: approx 13 kg
Emission / Immunity: EN / IEC 61326-1, class B / FCC class B
Code Description:
BOE 02300-13 BOECO centrifuge SC-6, 200-240V, 50/60 Hz, complete with 6-place swing-out rotor and carriers 02331 and 02333 (6 of each)
