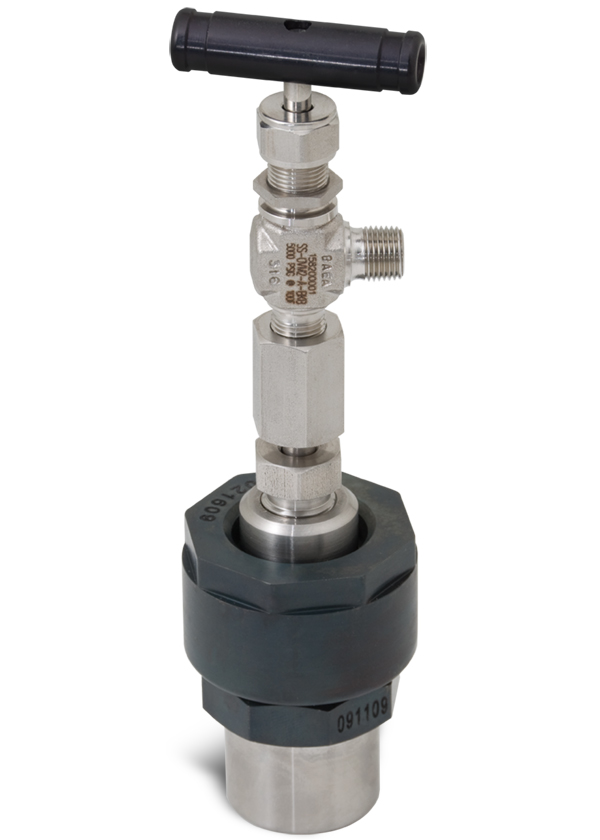

These are the smallest of the Parr General Purpose Pressure Vessels. They have a 1-inch inside diameter and are offered in two different lengths with volumes of 22 and 45 mL.

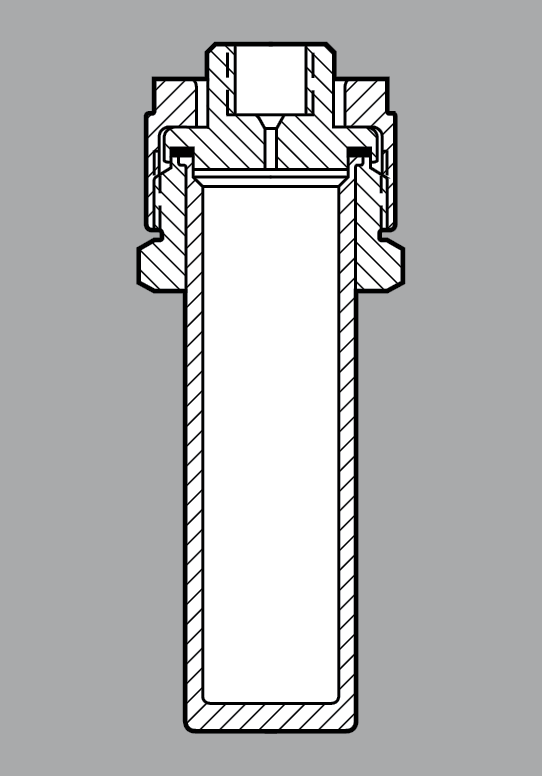

These vessels have a flat PTFE gasket or flexible graphite that is sealed with a screw cap. Special wrenches and bench sockets are offered for tightening these closures.
The screw caps and bodies are made of alloy steel for use at temperatures to 300 °C. The maximum working pressure is 1700 psi (115 bar). The standard material of construction for these small, inexpensive vessels is Type 316 Stainless Steel, but they are also available in all of the current materials of construction Parr provides.

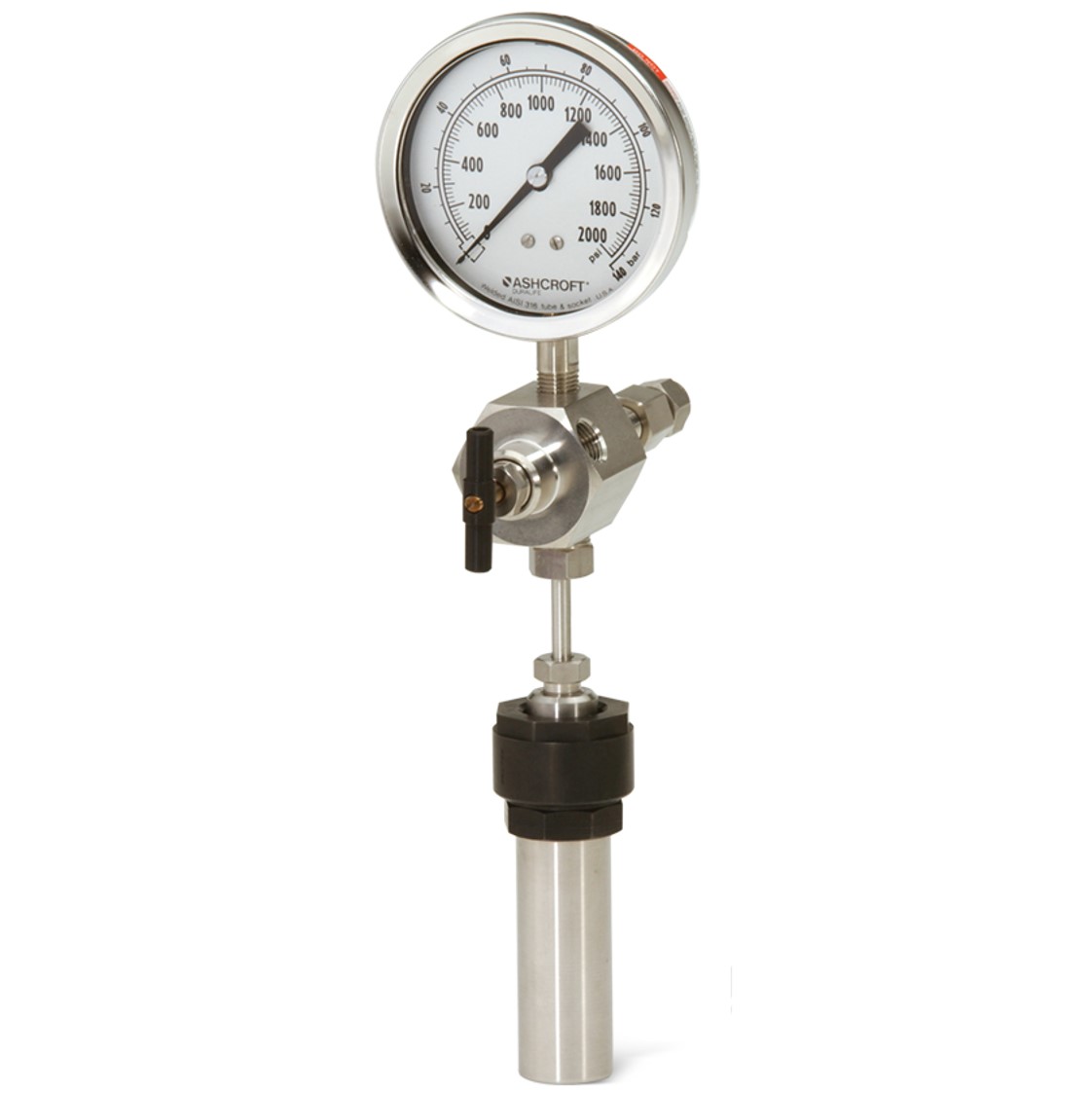

There is room for a single opening on the head of these vessels. This is generally an “A” socket which will accept a 4310 Gage Block Assembly. These heads can also be furnished with 1/8″ NPT, 1/4″ NPT, or a rupture disc assembly.
These vessels are normally heated in ovens, baths, or similar general purpose heating devices. Special heaters for these vessels are not available from Parr.
| Model Number | 4700 | |
| Approximate Volume, mL | 22 | 45 |
| Maximum Pressure (MAWP) | 1700 psi (115 bar) | |
| Maximum Temperature | 300 °C | |
| Vessel Details | ||
| Mounting Style | Moveable only | |
| Closure | Screw Cap-Steel | |
| Head Seal | Flat Gasket | |
| Head Opening Options | One head opening (1/8″ NPT, 1/4″ NPT, “A” socket, or rupture disc assembly port) Custom port option (Contact our technical sales department to discuss options) |
|
| Maximum Head Openings | 1 | |
| Temperature Measurement | N/A | |
| Stand and Heater Type | N/A | |
| Weight & Dimensions | ||
| Cylinder I.D. x Depth, inches | 1.0 x 1.6 | 1.0 x 3.8 |
| Vessel Assembly Weight, pounds* | 0.8 | 1.1 |
| Cylinder Weight, pounds | 0.2 | 0.5 |
| *Vessel weight is based on a moveable head vessel with a plugged “A” socket. Vessel weight will vary based on head configuration choice and fitting options. | ||
