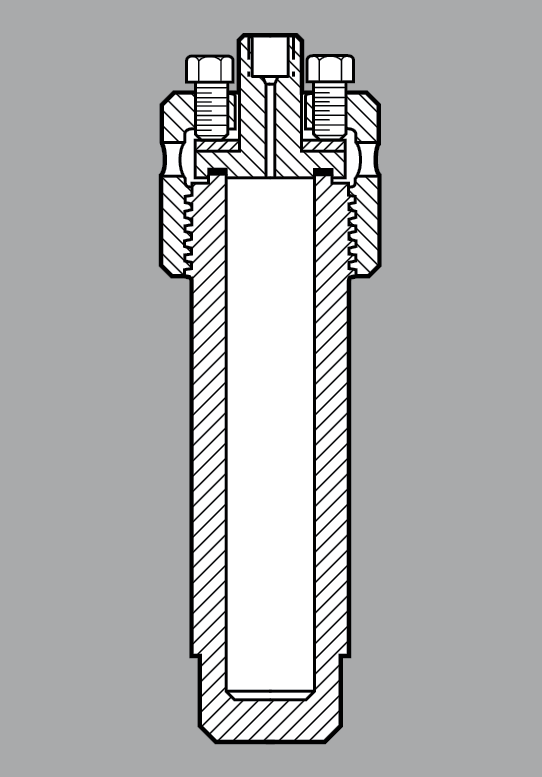

These are the smallest of Parr High Pressure/High Temperature Vessels. They have a 1-inch inside diameter and offer volumes of 25 or 75 mL. These vessels are closed with an alloy steel screw cap which includes six cap screws to develop the sealing force on a flat, flexible graphite gasket. Interchangeable PTFE gaskets are also available for users who need the high pressure capabilities provided by these vessels, but who do not need to operate above 350 °C. Maximum pressure drops quickly at temperatures above 350 °C to a rating of 1850 psi (125 bar) at 538 °C. These vessels are available in all of the standard materials currently offered by Parr, although some of these materials will limit the maximum pressures and temperatures available.

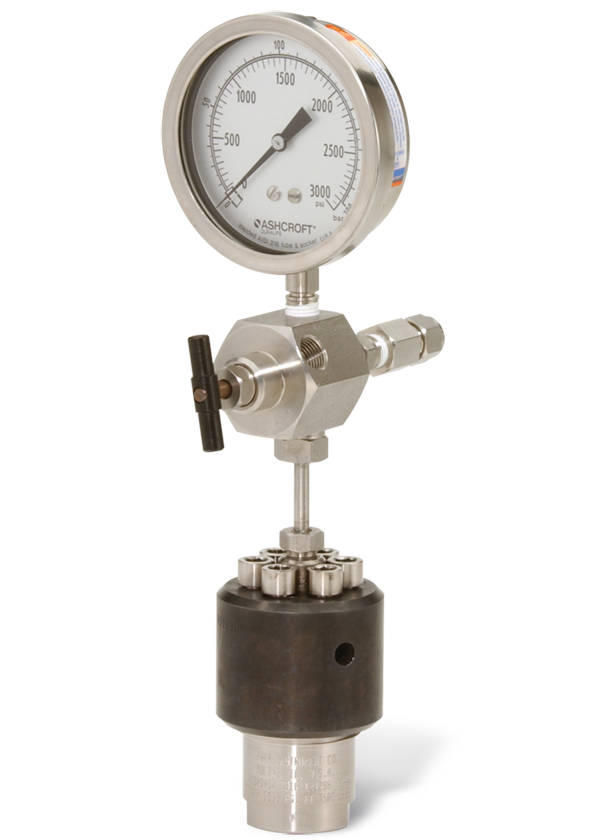

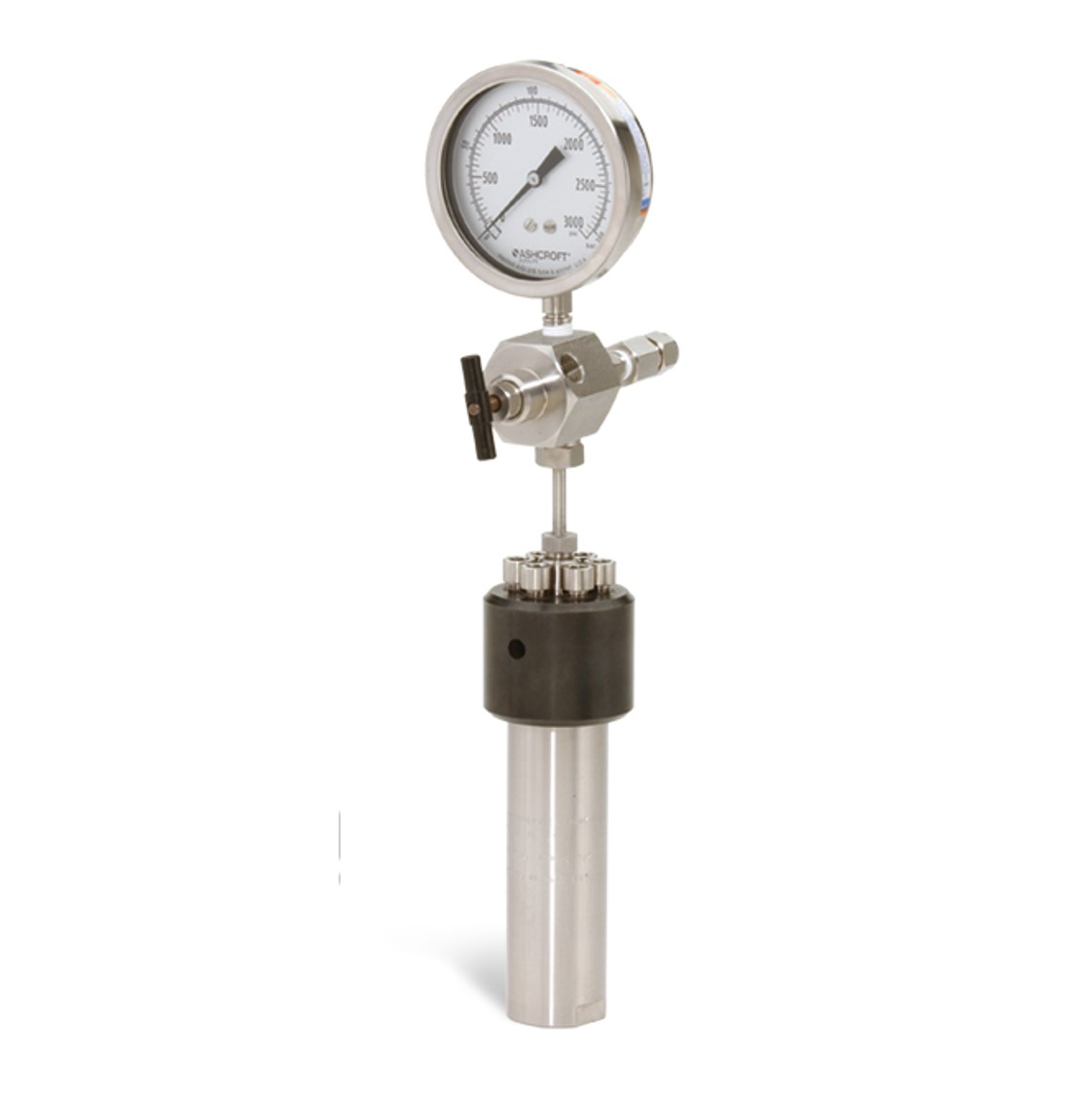

The head of these vessels can only accommodate one opening. It is designed to accept the 4316 Gage Block Assembly which can be furnished with or without a thermocouple. Parr now offers the 4921 Bench Top Ceramic Fiber heater for use with the 75 mL, 4740 vessel only. The smaller 4742 Vessels are generally heated in an oven, bath, furnace or similar general purpose heater (not available from Parr).
| Model Number | 4740 | |
| Approximate Volume, mL | 25 | 75 |
| Maximum Pressure (MAWP) | ||
| Working Limits w/ Standard Screw Cap | 8500 psi (586 bar) @ 350 °C 4100 psi (282 bar) @ 500 °C 1850 psi (127 bar) @ 538 °C |
|
| Working Limits w/ Alloy C-276 Screw Cap | 8500 psi (586 bar) @ 350 °C 8000 psi (551 bar) @ 500 °C 7900 psi (544 bar) @ 538 °C |
|
| Maximum Temperature | ||
| With PTFE Flat Gasket | 350 °C | |
| With Flexible Graphite Flat Gasket | 500-538 °C | |
| Vessel Details | ||
| Mounting Style | Moveable | |
| Closure | Screw Cap (6 Compression Bolts) | |
| Head Seal | Flat Gasket | |
| Head Opening Options | One head opening (“A” socket, or rupture disc assembly port) Custom port option (Contact our technical sales dept. to discuss options) |
|
| Maximum Head Openings | 1 | |
| Temperature Measurement (optional) | Thermocouple (in cylinder bottom or in optional gage block assembly) | |
| Stand and Heater (optional) | ||
| Stand Type | N/A | Bench Top Stand with Heater |
| Heater Style | N/A | Ceramic Fiber |
| Heater Power, Watts | N/A | 700 |
| Maximum Load, amps, 115V / 230V | N/A | 6 / 3 |
| Weight & Dimensions | ||
| Cylinder I.D. x Depth, inches | 1.0 x 1.7 | 1.0 x 5.6 |
| Vessel Assembly Weight, pounds* | 4 | 6 |
| Cylinder Weight, pounds | 1.4 | 3.2 |
| *Vessel weight is based on a moveable head vessel with a plugged “A” socket. Vessel weight will vary based on head configuration and fitting options. | ||
