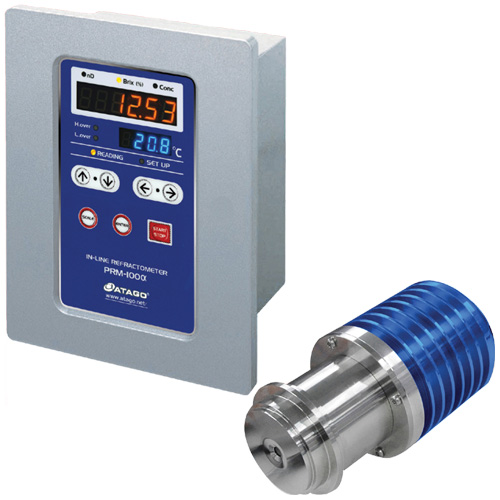

Simply attach the unit to a piping system to monitor food or beverage production, pharmaceutical production, industrial fluid, washing devices, dilution/mixing devices, etc. Continuously monitor water content and mixing ratio with successive measurements of refractive index, Brix, or concentration.
*The prism is specially designed to prevent solid materials from collecting on the surface, even after extended periods of use.
Scale: Refractive index, Brix
Measurement Range:
Refractive index (nD) : 1.32000 to 1.55700
Brix : 0.00 to 100.00%
Resolution:
Refractive index (nD) : 0.0001 or 0.00001
Brix : 0.1 or 0.01% (by selection)
Measurement Accuracy:
Refractive index : ±0.00010
Brix : ±0.05%
Temperature compensation range: 5 to 100°C
(Clean-in-process (CIP) up to 130°C for no more than 30 minutes)
Alarm output: Open-collector output for high and low limit settings (alarm output)
Output: RS-232C, DC4 to 20mA
Power Supply: AC 100 to 240V, 50 / 60Hz
International Protection Class: Detection section IP66, Calculation Display section IP65
Included Accessories:
Detection section – display section connecting cable (Standard 15m)
Recorder output cable (4-20mA) (Standard 10m)
Clamp band (for use in mounting a sample inlet unit)
O-ring (for use in mounting a sample inlet unit)
Dimensions & Weight:
Detection section : 10.8 × 26.6 × 10.8cm, 3.3kg
Calculation Display section : 19.2 × 10 × 24cm, 3.3kg
