Large Viewing and Photographic Cabinets
- Modular design allows for adaptation of interchangeable Spectroline UV lamps
- Complete with an internal 25-watt white light bulb
- Specially designed port allows for safety viewing eyepiece or the substitution of a “snap-on” camera adapter for photography

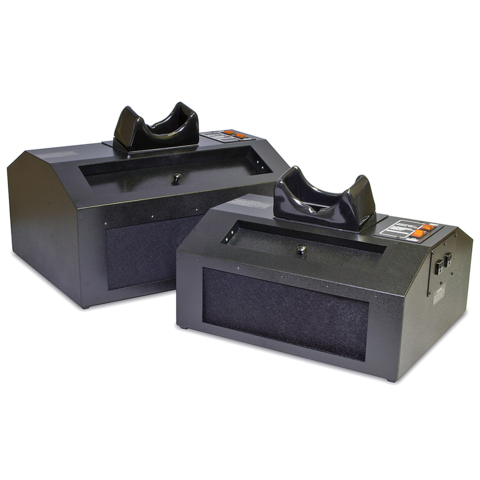

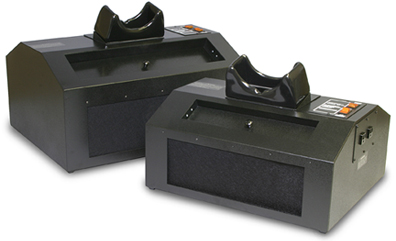

Our CC-80 and CL-150 fluorescence analysis cabinets offer superior fluorescence viewing of research findings. They feature a modular design which lets you vary UV wavelengths with interchangeable Spectroline UV lamps; maximize fluorescent contrast by adding a Spectroline transilluminator and document your results with “snap-on” Spectroline camera adapters. Visible epi-illumination is provided by an internal 25-watt white light bulb.
Rugged and durable, both cabinets are made of aluminum with a chemical-resistant polyurethene coating. Felt curtains permit easy access to the interior while blocking out ambient light. All light control switches are conveniently located on the top of the cabinets. When maximum intensity is desired, dual lamps can be operated simultaneously in those cabinets that accept two lamps.

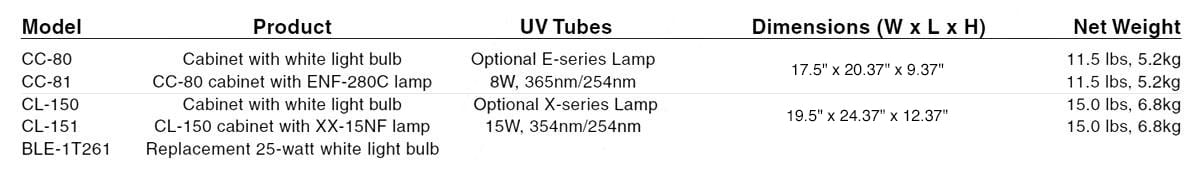

CC-80 cabinets accommodate our E-series lamps (8-watt, single or double tube models), whereas CL-150 cabinets accommodate our X-series lamps (15-watt, single or double tube models). The spacious CC-80 cabinet accepts standard gels and up to two 8” x 8” (20 x 20cm) TLC plates, while the even roomier CL-150 can easily accommodate larger gels and up to four 8” x 8” plates.
The CC-81 workstation includes a CC-80 cabinet with an ENF-280C lamp with separate 8-watt LW (365nm) and SW (254nm) UV tubes. Whereas the CL-151 includes a CL-150 cabinet with an XX-15NF lamp with separate 15-watt LW and SW UV tubes.
