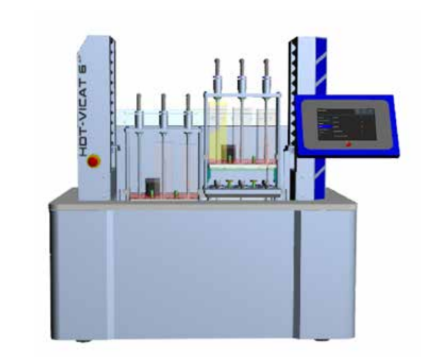

HDTVicat tester type 6U
The Model HDT Vicat 6U is the latest generation of our microprocessor controlled automatic HDT/Vicat testing in-
struments, capable of testing up to six different specimens simultaneously and independently, with an automated
testing sequence that proceeds according to user defined control and configuration parameters.

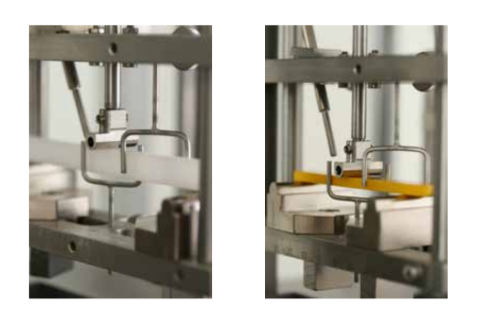

This 6 station testing instrument is capable to determine the Heat Deflection Temperature (HDT), the VICAT
Softening Temperature (VST) or the creep behavior by three-point loading according to the following standards:
ISO 75 part 1 and 2, ISO 306, ASTM D 648, ASTM D 1525, EN ISO 899-2 and equivalents.
Features:
- Universal HDT/Vicat – testing instrument for fully automatic control of entire test cycle
- Modular system (can be upgraded)
- Automatic correction for thermal expansion of test frames
- Electronic transducer (LVDT) integrated for 0,001 mm resolution of deflection and penetration
- Air bearing-guided loading rods for a nearly friction free load apply
- Temperature of each station (HDT or VICAT) is measured by a Pt 100 thermocouple (1/3 DIN)
- Inert gas overlay
- Built-in heat exchanger for rapid cooling down
Technical data:
| HDTVicat 6U | ||
| Number of stations | 1….6 | |
| Dimension | ||
| Width [mm] | 830 | |
| Height [mm] | 840 | |
| Depth [mm] | 560 | |
| Weight [kg] | 110 | |
| Electrical data | ||
| Rated Voltage [V] | 88-264 | |
| Power frequency [Hz] | 47-63 | |
| Nominal power [kW] | 3 | |
| Unit fuse [A] | 10 | |
| Phase (Nominal voltage) [ph] | 1~ | |
| Technical characteristics | ||
| Temperature range [°C] | 300 | |
| Resolution temperature display [°C] | 0,1 | |
| Temperature deviation [K] | +/- 0,2 F.S | |
| Heating rate [K/h] | 50….120 | |
| Resolution encoder [mm] | 0,001 | |
| Ambient temperature [°C] | 10-40 | |
| Ambient humidity, not condensing [%rH] | 90 | |
| Instrument features | ||
| 7" Touch screen | V | |
| Highly precise displacement transducer | V | |
| Weight lifting device for weights | V | |
| Weight lifting device for station | V | |
| Inertgas overlay | V | |
| Printer port | V | |
| Integrated cooling pipe | V | |
| Built-in external and internal over-temperature protection | V | |
| Protection shield | V | |
| Emergency stop button | V | |
| Software features | ||
| Integrated database | V | |
| Automatic logfile creation | V | |
| User guidance | V | |
| Automatic parameter validity check | V | |
| User rights and password assignment | V | |
| Language selection | V | |
| Logo import | V | |
| Data export (pdf, txt, xlsx) | V | |
| Test results and report configuration | V | |
| Data import | V | |
| Integrated WebServer | V | |
| Built in USB-port | V | |
| Built in serial port | V | |
| Built in LAN port | V | |
| WLAN port | V |
