The high-quality Isolation of the 4 l bath allows fast heating and reduces heat input when cooling.
Using the external temperature control circuit is possible for up to 2.5 l thermofluid without a refill.
The integrated hopper and drain valve ensure a safe and clean handling of the thermofluid. The easy-to-open front flap allows an easy cleaning of the cooling unit’s air filter.There is a drain valve on the front side of the bath. A hose can be connected to empty the bath, so the user does not get in direct contact with the thermofluid.

• Speed-controlled refrigeration system with 400 W cooling capacity
• Speed-controlled pump make of PEEK: (0.5 bar; 22 l/min)
• 1500 W heating capacity (1200 W @115V)
• Digital level indicator
• Safety classification III (FL) according to DIN 12876
• Adjustable temperature safety circuit

Interfaces:

• RS 232
• USB

Scope of delivery

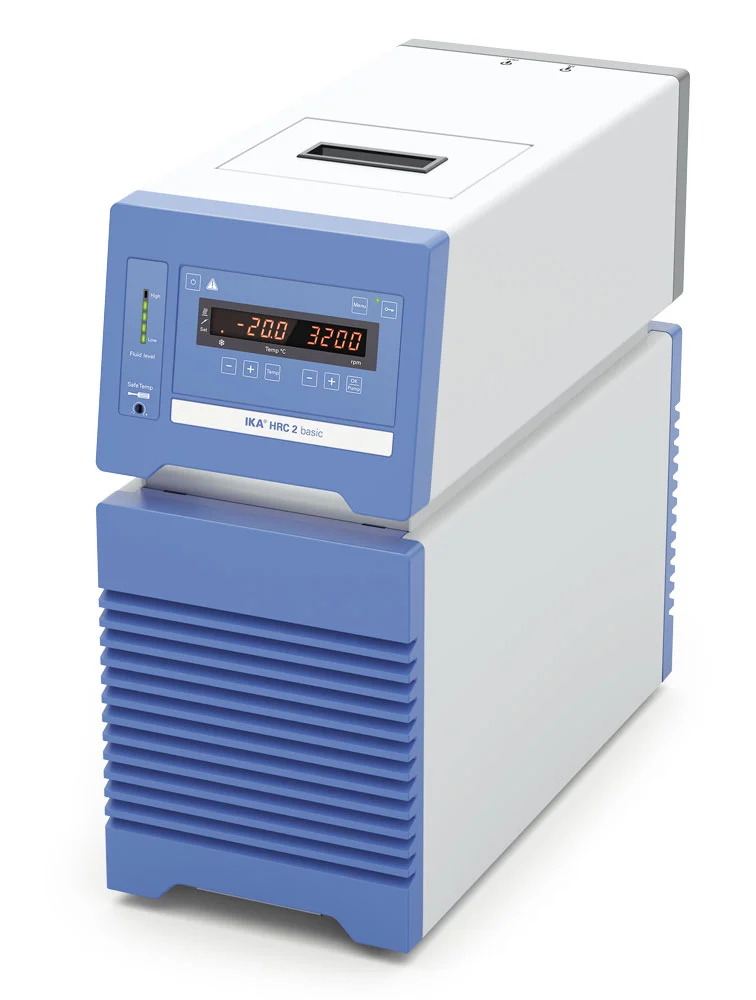

• HRC 2 basic
• Hose olive NW 8 (2 pcs.)
• Hose olive NW 12 (2 pcs.)
• Screwdriver (use for safety circuit)
• USB Cable – USB A to Micro-B, 2 m
