VOLS-1

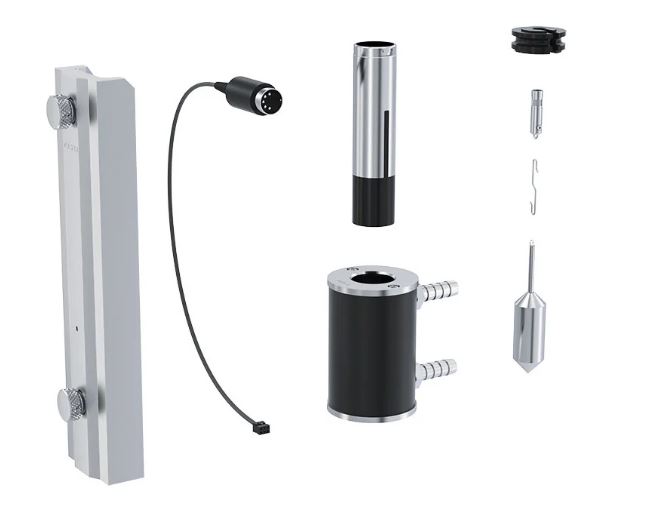

Adapter to measure the viscosity of especially valuable and expensive samples. A double jacket with temperature sensor to quickly heat up or cool down the sample as well as a coaxial cylinder system for the analysis of the sample at a specific shear rate is included.
Further spindles and chambers for different volumes can be purchased separately.
Min. FSR match ROTAVISC lo-vi1.5 mPa.s
Max. FSR match ROTAVISC lo-vi30000 mPa.s
Min. FSR match ROTAVISC me-vi16 mPa.s
Max. FSR match ROTAVISC me-vi320000 mPa.s
Min. FSR match ROTAVISC hi-vi I32 mPa.s
Max. FSR match ROTAVISC hi-vi I640000 mPa.s
Min. FSR match ROTAVISC hi-vi II128 mPa.s
Max. FSR match ROTAVISC hi-vi II2600000 mPa.s
Material in contact with medium stainless steel 1.4404 Dimensions (W x H x D)300 x 110 x 275 mm Weight 1.656 kg Permissible ambient temperature 5 – 40 °C
