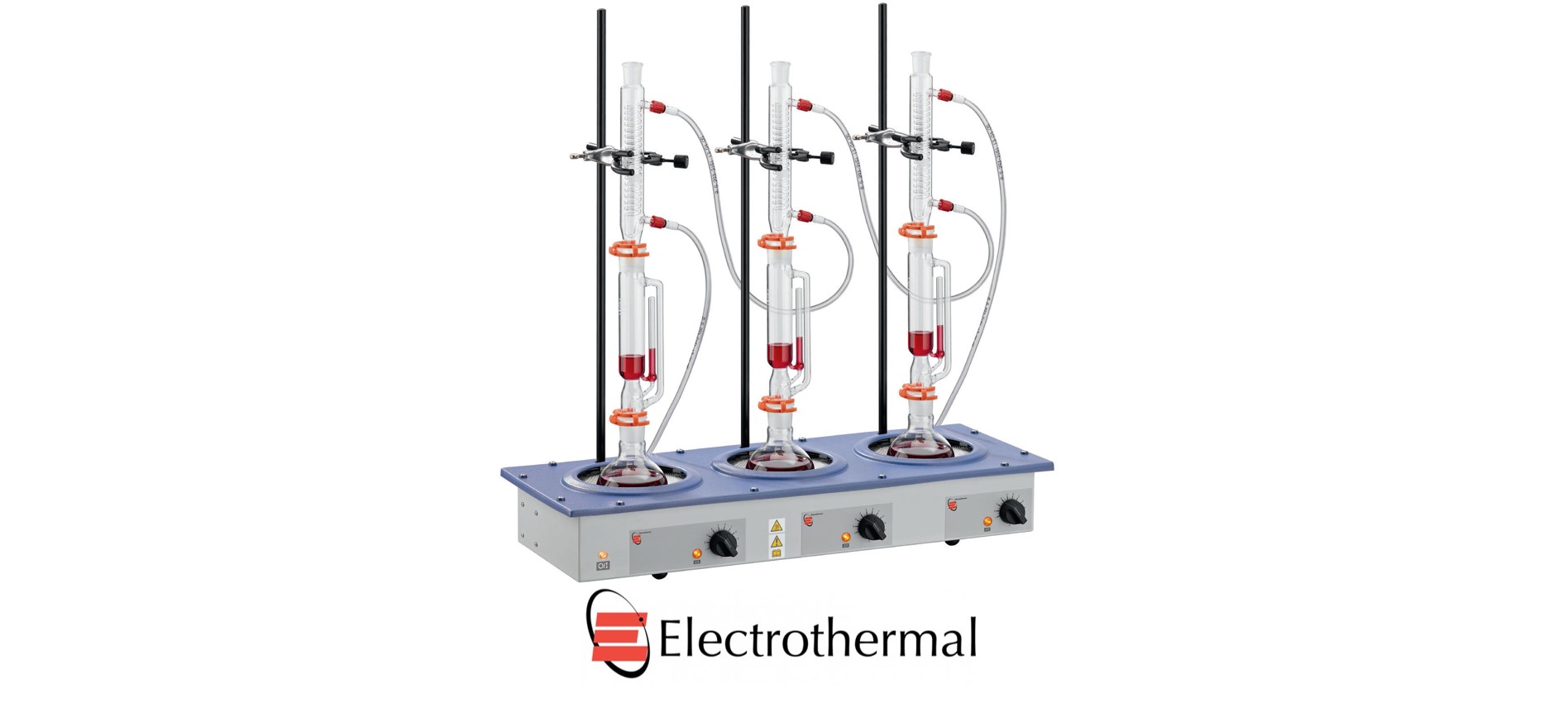

Multi (Extraction) Mantles: 3 Recess Model. Electrothermal

מעיל חימום, ומעיל חימום עם בחישה 3 עמדות תוצרת Eectrothermal. ניתן להזמין לנפחים של 250, 500 או 1000 מ"ל.

חימום עד 450°C.

תיאור

Multi (Extraction) Mantles: 3 Recess Model

The 3 place multi position (extraction) mantle has a built-in electronic controller and offers a choice of heater only (EME3) or heater/stirrer (EMEA3) combination.

The vented case's unique air flow ensures the outer case remains safe to touch.

For both Heater EME3 and Heater/Stirrer EMEA3 models

• Individual built-in solid state electronic controls enable easy regulation of heater, while removing sparking associated with mechanical switching

• Three 12.7mm diameter support rods are included

• Round bottom flask capacity from 100ml to 1000ml at all 3 positions

• Top cover is polypropylene and external surfaces are powder coated giving good general chemical resistance

• Coiled heating element is suspended within a thermal insulating cartridge to provide maximum heat transfer and support

• Earth (ground) screen encloses the heater for added safety

• Individual heater cartridges are replaceable

• Neon lights indicate when power is on and supplied to heaters and, if applicable, supplied to stirrers

Additional Features for Heater/Stirrer EMEA3 models only

• Allow the solution to be stirred and heated simultaneously

• Provide stirring speeds of between 50 to 1000rpm

• One stirring control operates each set of three recesses

Technical Specification

Material Polypropylene top on powder-coated aluminium
Max element temperature 450°C

Heater Model Ordering Information

Model Flask Capacity Dimensions (d x w x h), mm No. of Recesses Electrical Requirements Shipping Weight, kg
EME30100/CEB 3 x 100ml 270 x 640 x 110 3 230v 50/ 60Hz, 180W UK and EU plug 6.2
EME30100/CEBX1 3 x 100ml 270 x 640 x 110 3 115v 50/ 60Hz, 180W 6.2
EME30250/CEB 3 x 250ml 270 x 640 x 110 3 230v 50/ 60Hz, 450W UK and EU plug 6.2
EME30250/CEBX1 3 x 250ml 270 x 640 x 110 3 115v 50/ 60Hz/ 450W 6.2
EME30500/CEB 3 x 500ml 285 x 755 x 130 3 230v 50/ 60Hz, 600W UK and EU plug 7.4
EME30500/CEBX1 3 x 500ml 285 x 755 x 130 3 115v 50/ 60Hz, 600W 7.4
EME31000/CEB 3 x 1000ml 285 x 755 x 130 3 230v 50/ 60Hz, 900W UK and EU plug 7.4
EME31000/CEBX1 3 x 1000ml 285 x 755 x 130 3 115v 50/ 60Hz, 900W 7.4
