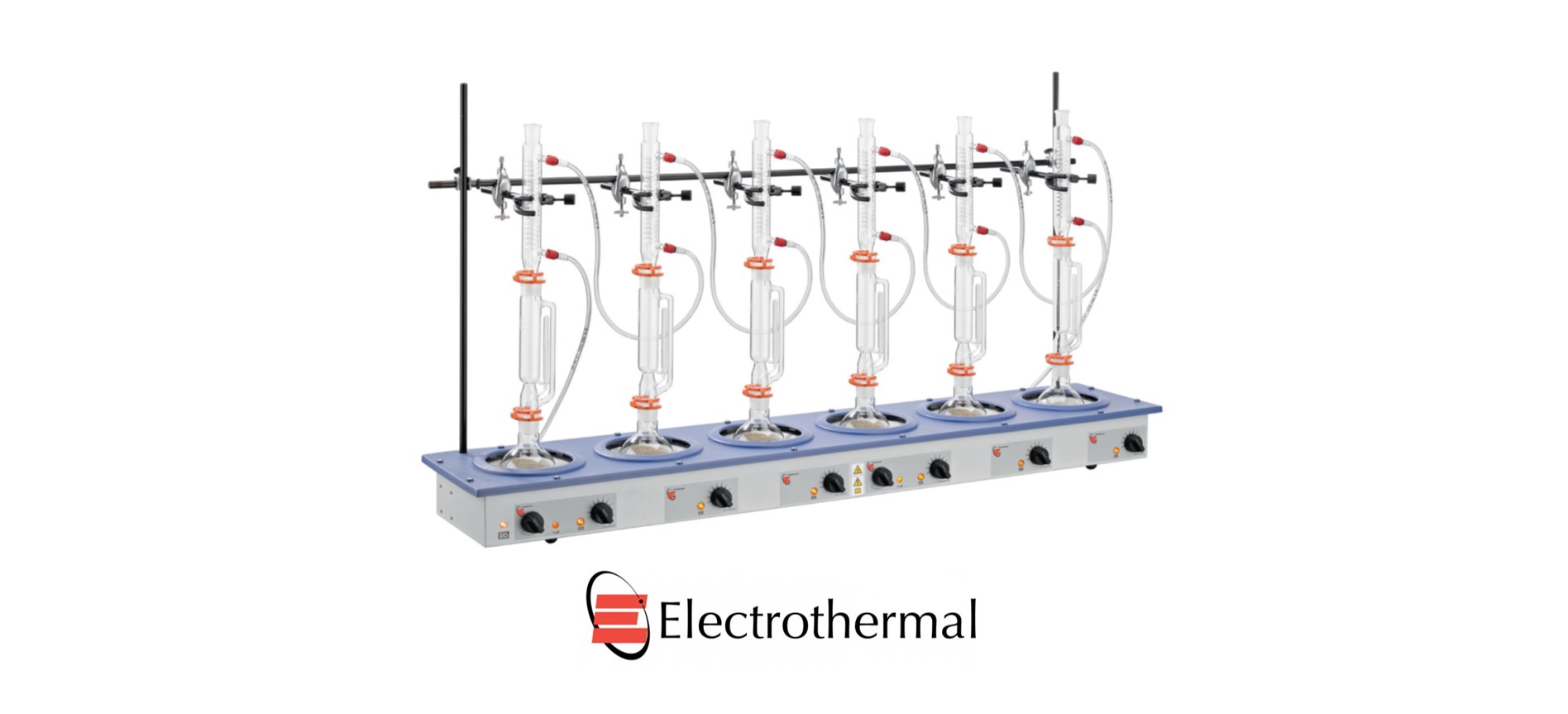

Multi (Extraction) Mantles: 6 Recess Model. Electrothermal

The Multi (Extraction) Mantle with six recesses has a built-in electronic controller and offers a choice of heater only (EME6) or heater/stirrer (EMEA6) combination models.

The vented case's unique air flow ensures the outer case remains safe to touch.

For both Heater EME6 and Heater/Stirrer EMEA6 models

• Individual built-in solid state electronic controls enable easy regulation of heater, while removing sparking associated with mechanical switching

• Three 12.7mm diameter support rods are included

• Round bottom flask capacity from 100ml to 1000ml at all 6 positions

• Top cover is polypropylene and external surfaces are powder coated giving good general chemical resistance

• Coiled heating element is suspended within a thermal insulating cartridge to provide maximum heat transfer and support

• Earth (ground) screen encloses the heater for added safety

• Individual heater cartridges are replaceable

• Neon lights indicate when power is on and supplied to heaters and, if applicable, supplied to stirrers

Additional Features for Heater/Stirrer EMEA6 models

• Allow the solution to be stirred and heated simultaneously

• Provide stirring speeds of between 50 to 1000rpm

• One stirring control operates eEMEA3ach set of three recesses

Technical Specification
