Excellent Cost Performance

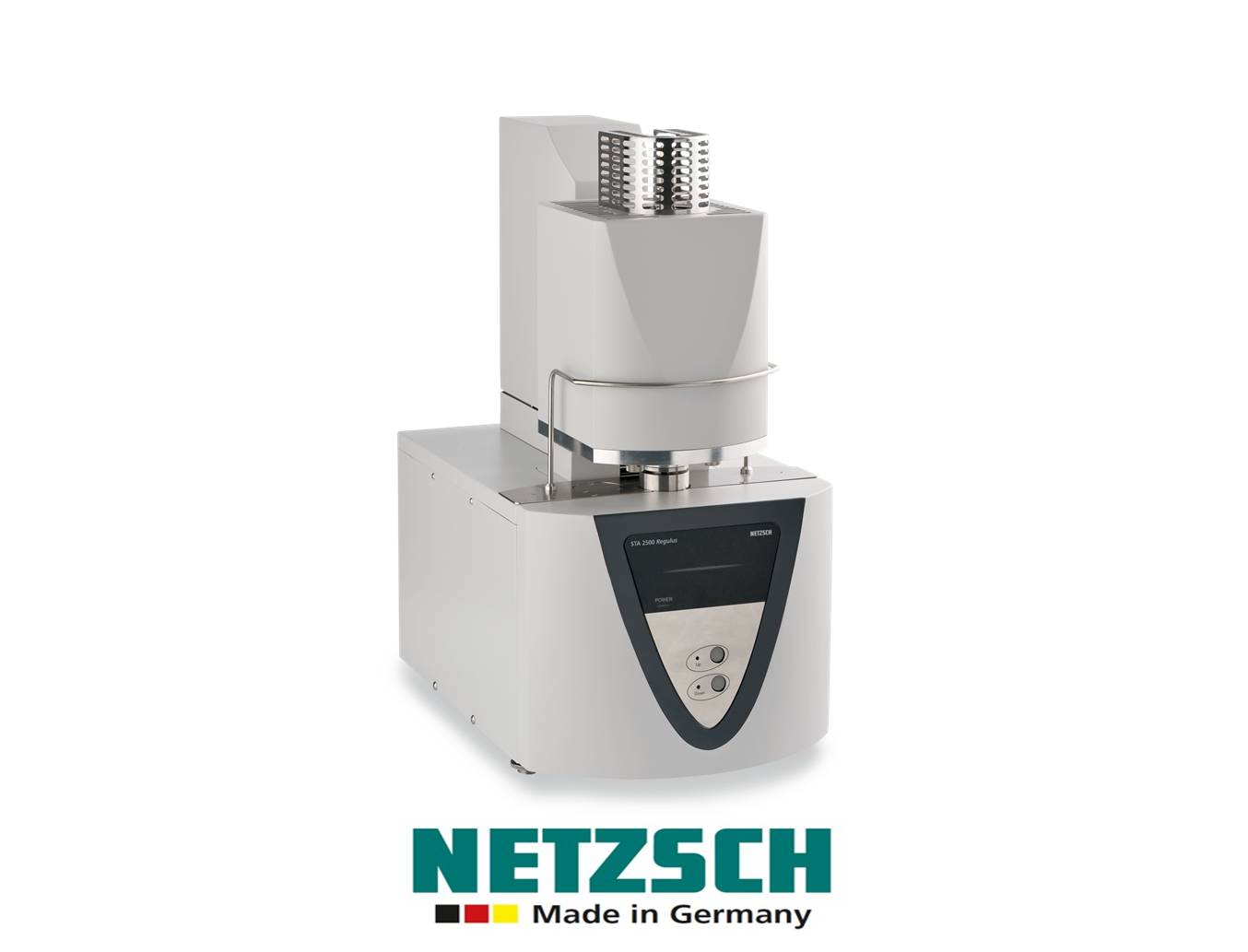

The STA 2500 Regulus features a highly reliable, fully equipped instrument package for STA measurements up to 1600°C at an attractive price.
Top-Loading and Unique Differential Balance Arrangement
The natural gas flow in the top-loading system guarantees automatic protection of the balance against condensation and contamination. The tailor-made differential balance system cancels out buoyancy and convection influences over a broad temperature range. This provides easy operation without the need for timeconsuming baseline runs.
Various Atmospheres Available
Measurements can be performed in inert and oxidizing atmospheres but also under vacuum. The atmosphere can be dynamic or static. The built-in mass flow controllers (MFCs) are software-controlled and allow gas changes at any time during the test.
Ideal for Evolved Gas Analysis
The top-loading design of the STA allows for convenient coupling to gas analysis systems such as FT-IR (Fourier Transform Infrared) spectrometer, MS (mass spectrometer), or GC-MS (gas chromatograph – mass spectrometer). During thermal treatment, the gases evolved can be simultaneously analyzed.
- Maximum sample temperature:
1600°C (depending on the furnace) - Furnace I: RT to 1100°C
(heating rate 0.001 to 100 K/min)
Furnace II: RT to 1600°C
(heating rate 0.001 to 50 K/min) - Temperature precision:
0.3K - Weighing range:
± 250 mg - Sample load:
1 g max. - Thermogravimetric resolution:
0.03 μg - Thermocouple:
Type S - Vacuum-tight:
up to 10-4 mbar (10-2 Pa) - Gas atmospheres:
inert, oxidizing, vacuum
Thermogravimetric Effects:
- TGA curves in absolute mass change (mg) or relative mass (%)
- Automatic evaluation of mass change steps and characteristic temperatures
- Extrapolated onset and endset
- Peak temperatures and values of the 1st and 2nd derivatives
- TGA stability check for each determination of the measurement
- Rate-controlled mass loss
Caloric Effects:
- Determination of caloric effects in [μV], [μV/mg] and [mW/mg]
- Determination of onset, peak, inflection and end temperatures
- Automatic peak search
- Exothermal presentation in accordance with DIN or ASTM (selectable)
- Calculation for conversion of DTA in DSC signal
