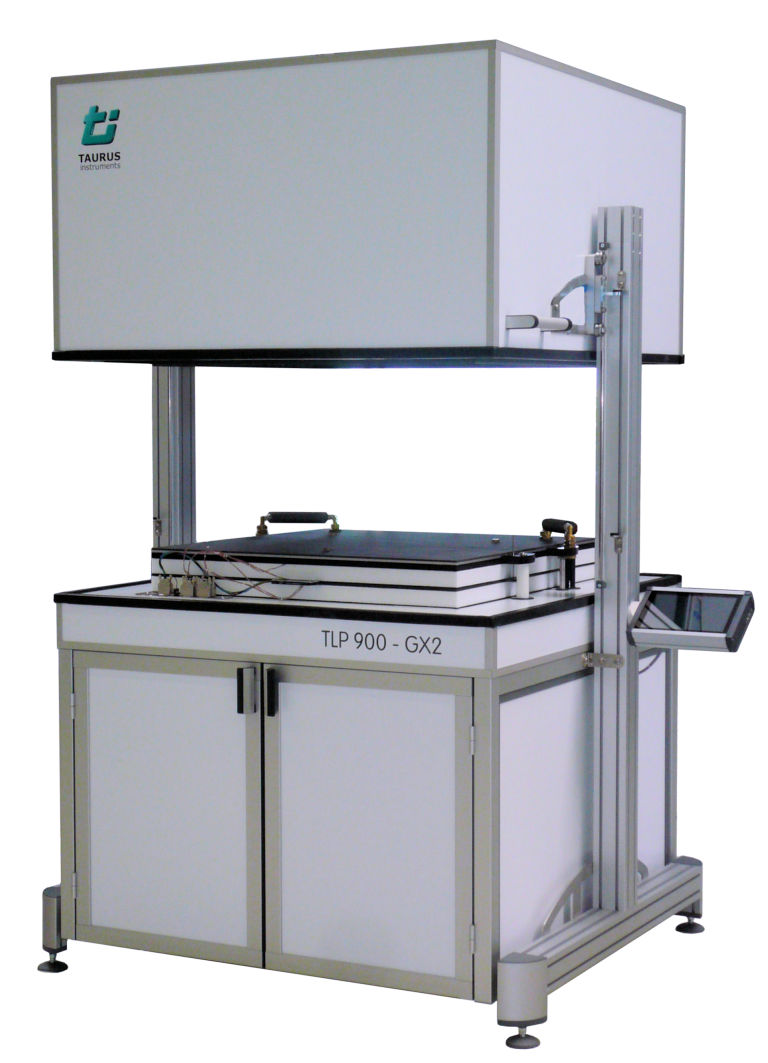

Measuring devices of the TLP 800 X / 900 X series are robust cabinet devices, which are especially suited for testing thicker samples of insulation material. Due to the integrated Single Board Computer (SBC) with Windows 10 operating system, the software Lambda 2016 and the high resolution color touch display the devices are very user friendly.
Numerous interfaces such as RS232, USB and Gigabit Ethernet enable the connectivity to peripheral devices and the fast and convenient transfer of all relevant data. The connection to an external PC allows for performing extensive evaluations of the test results and printing of test reports.
Features:
- Fully insulated (X) or temperature controlled (GX) test chamber to avoid external influences
- Two device versions according to one (X1) or two plate (X2) method
- Cooling with external recirculation cooler for extended temperature and measuring range
- Electrically operated plate lifting mechanism
- Electrically operated cover lifting mechanism
- Digital measurement of pressure and sample thickness
- SBC with 32 GB SSD, Windows 10 and software Lambda 2016
- 10.1“ color touch screen
- Interfaces: 1x RS232, 2x USB, 1x Gigabit Ethernet
Technical data:
| TLP 800 X1 (2) | TLP 800 GX1 (2) | TLP 900 X1 (2) | TLP 900 GX1 (2) | |
| Measuring range* | 0.005 – 1.5 W/m·K | 0.005 – 1.5 W/m·K | 0.005 – 1.5 W/m·K | 0.005 – 1.5 W/m·K |
| Sample size (LxW) | 500 x 500 – 800 x 800 mm |
500 x 500 – 800 x 800 mm |
500 x 500 – 900 x 900 mm |
500 x 500 – 900 x 900 mm |
| Sample thickness (H) | 10 – 180 mm | 10 – 240 mm | 10 – 220 mm | 10 – 280 mm |
| Temperature range Cooling plate Heating plate |
(min./max.) -10 – +50 °C 0 – +60 °C |
(min./max.) -10 – +50 °C 0 – +60 °C |
(min./max.) -10 – +50 °C 0 – +60 °C |
(min./max.) -10 – +50 °C 0 – +60 °C |
| Dimensions (HxWxD) (cover open) |
233 x 146 x 128 cm | 233 x 146 x 128 cm | 233 x 146 x 128 cm | 233 x 146 x 128 cm |
| Power supply | 110 – 230 V 50/60 Hz | 110 – 230 V 50/60 Hz | 110 – 230 V 50/60 Hz | 110 – 230 V 50/60 Hz |
| Weight | 264 kg | 269 kg | 268 kg | 276 kg |
* depending on sample thickness
