Magnification: 40X- 1000X
Optical Head: Compensation Free Binocular Head, 30° inclined, 360° rotatable, Interpupillary Distance 55 – 75 mm
Nosepiece: Quadruple revolving nosepiece
Eyepiece: Pair Eyepiece WF 10X /18 mm Widefield
Objectives: BOECO Achromat DIN Objectives 4x/0.10, 10x/0.25, 40x/0.65 (S), 100x/1.25 (S, Oil)
Stage: Double layer mechanical specimen stage. 140 x 140 mm Travel area 75 x 50 mm,
Focusing: Coaxial coarse and Fine Focus Adjustment, Range 24mm Fine Division 2 microns safety autofocus stop unit.
Condenser: Abbe Brightfield condenser, n.A. 1,25, Integrated iris diaphragm and filter tray. With rack & pinion height adjustment
Illumination: 6V 20W Halogen, light intensity adjustable.
Body /power: Sturdy body with supportive rubber and inbuilt power supply 110-240V
Supplied with: Dust cover, blue filter, immersion oil, 1 spare Halogen bulb and instruction manual
Dimension: 178 x 227 x 360 mm, Netweight 6,20 kg
Packing: 360 x 260 x 465 mm, Grossweight 7,90 kg
Code Description

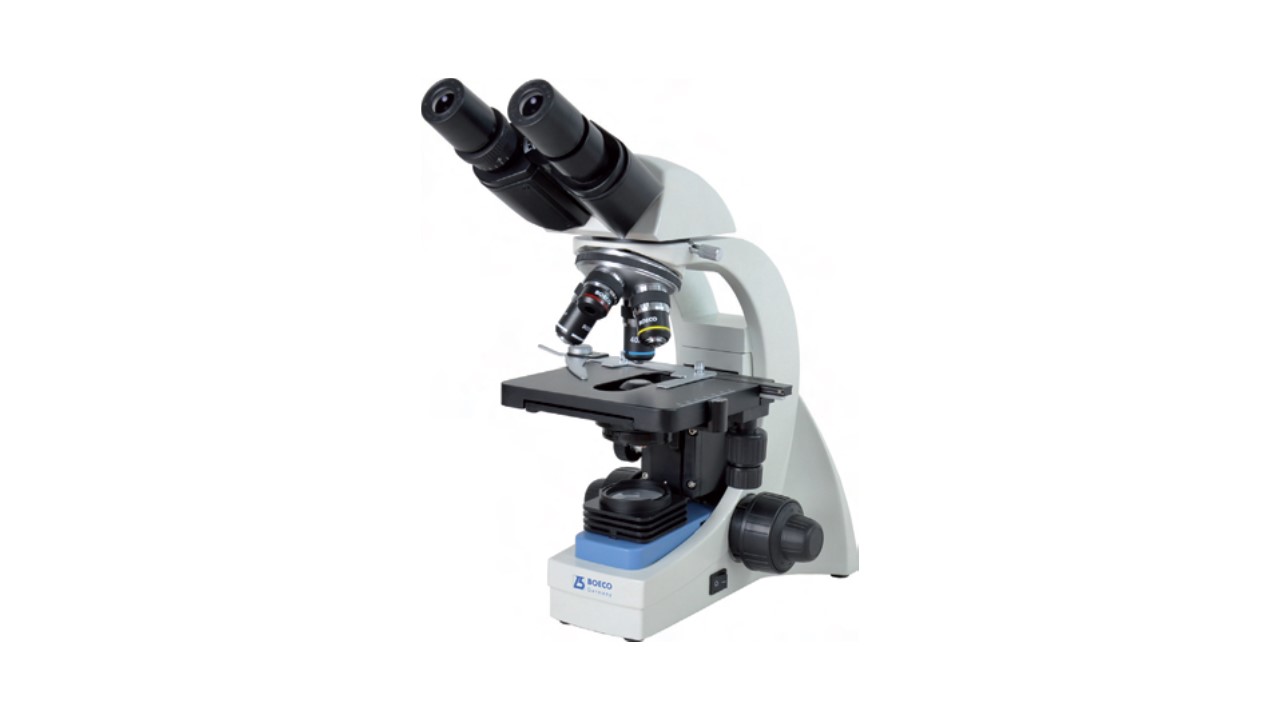

BOE 1200.100 Model BM-120, 110-240V 50/60 Hz, Euro Plug
