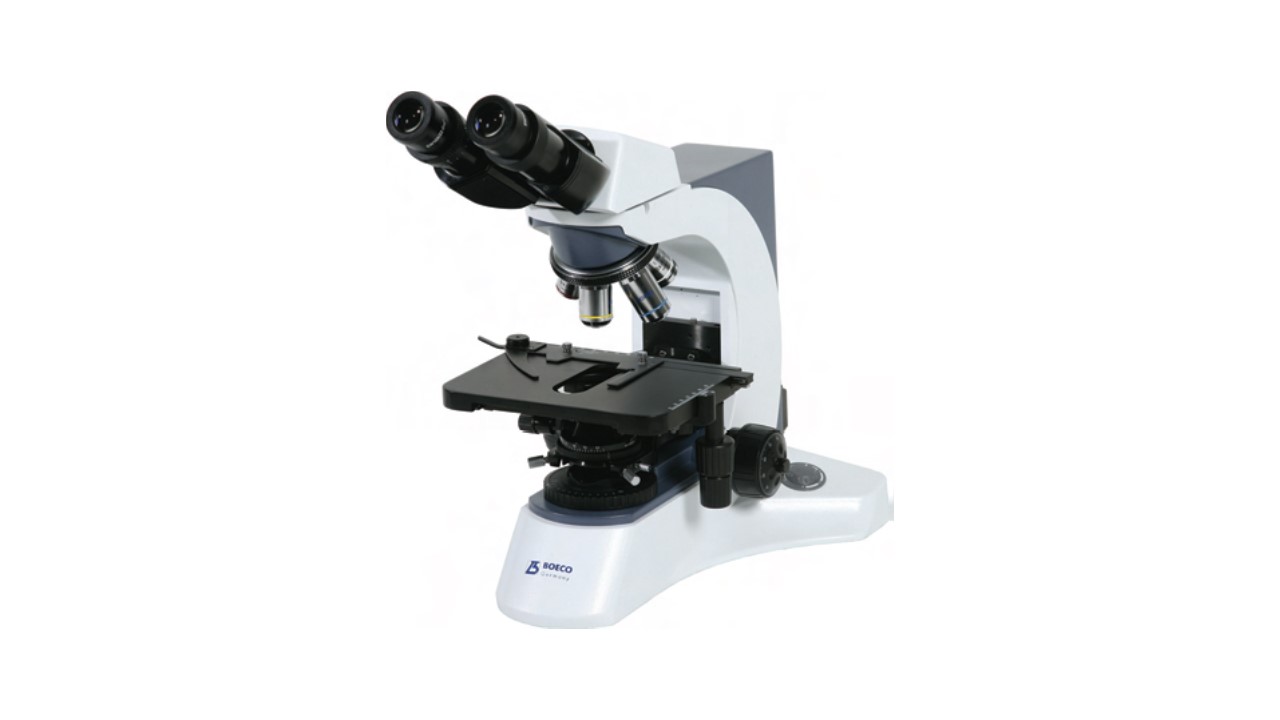

Specification BM-800:
Optical System: Infinity corrected system, field diameter 22 mm
Vieving Head: Bin- or Trinocular compensation free Head, 30° inclined, 360° rotatable, Interpupillary Distance 48 – 75 mm
Nosepiece: Backward quintuple revolving nosepiece
Eyepiece: Larger viewing area with extra wide field eyepiece EWF 10X /22 mm
Objectives: BOECO Infinity corrected Plan Achromat Objectives 4x/0.10, 10x/0.25, 40x/0.65 (S), 100x/1.25 (S, Oil)
Stage: Large sized double layer mechanical specimen stage. 185 x 142 mm, Moving range 75 x 55 mm,
Focusing: Coaxial coarse and calibrated fine focus control, graduated 0,001 mm, Safety autofocus stop unit.
Condenser: Swing condenser, N.A. 0,9/0,25,
Field diaphragm: With aspherical condenser and Köhler Illumination
Illumination: 6V 30W external Halogen lamp, light intensity adjustable.
Body / power: Modern and ergonomic body made from die-cast aluminium with inbuilt power supply
Supplied with: Dust cover, immersion oil, 1 spare halogen bulb, green + blue filter and instruction manual
Dimension: 280 x 358 x 304/416 mm
Code Description
BOE 8000.550 Model BM-800/I/PL, 220V 50/60 Hz
