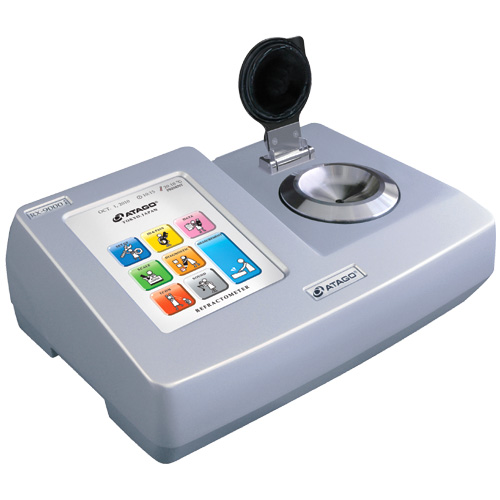

Featuring intuitive touch screen technology, the new RX-i series makes navigation and selection a breeze.
The RX-i series come with newly added functions, such as USB flash drive and self-diagnosis capability.
The RX-7000i features an even wider refractive index range than its predecessor.
FDA 21 CFR Part 11 Software Included in Standard Delivery
| Scale | Refractive index Brix |
|---|---|
| Measurement Range | Refractive index (nD) : 1.32422 to 1.70000 Brix : 0.00 to 100.00% (5 to 75°C ATC) |
| Resolution | Refractive index (nD) : 0.00001 Brix : 0.01% Temperature : 0.01°C |
| Measurement Accuracy (nD) | ±0.00004 (nD 1.33299 to1.42009 at 10.00 to 30.00°C) ±0.00010 (For ranges other than the above) |
| Measurement Accuracy Brix | ±0.03% (Brix 0.00 to 50.00% at 10.00 to 30.00°C) ±0.05% (Brix 50.01 to 95.00% at 10.00 to 30.00°C) ±0.10% (For ranges other than the above, with Sucrose solution by MODE-1) |
| Repeatability (nD) | ±0.00002 (nD 1.33299 to1.42009 at 10.00 to 30.00°C) ±0.00005 (For ranges other than the above) |
| Repeatability Brix | ±0.01% (Brix 0.00 to 50.00% at 10.00 to 30.00°C) ±0.02% (For ranges other than the above, with Sucrose solution by MODE-1) |
| Temperature control range | 5.00 to 75.00°C (No lower than 10°C below the ambient temperature and no higher than 55°C above the ambient temperature) |
| Power Supply | AC100V to 240V, 50/60Hz |
| Dimensions & Weight | 37×26×14cm, 7.0kg (Main Unit only) |
| Power consumption | 90VA |
| Mode | MODE-1: Displays the measurement value once the sample reaches the target temperature.MODE-2: Measures refractive index and temperature at fixed intervals and displays the estimated measurement value at the target temperature.MODE-3: The thermo-module can be turn off. Without temperature control, the measurement value is displayed in 4 seconds after the START key is pressed.MODE-S: Displays the measurement value once a certain level of sample stability is achieved. |
| Output terminals | • Printer (for ATAGO digital printers) • Computer -USB |
