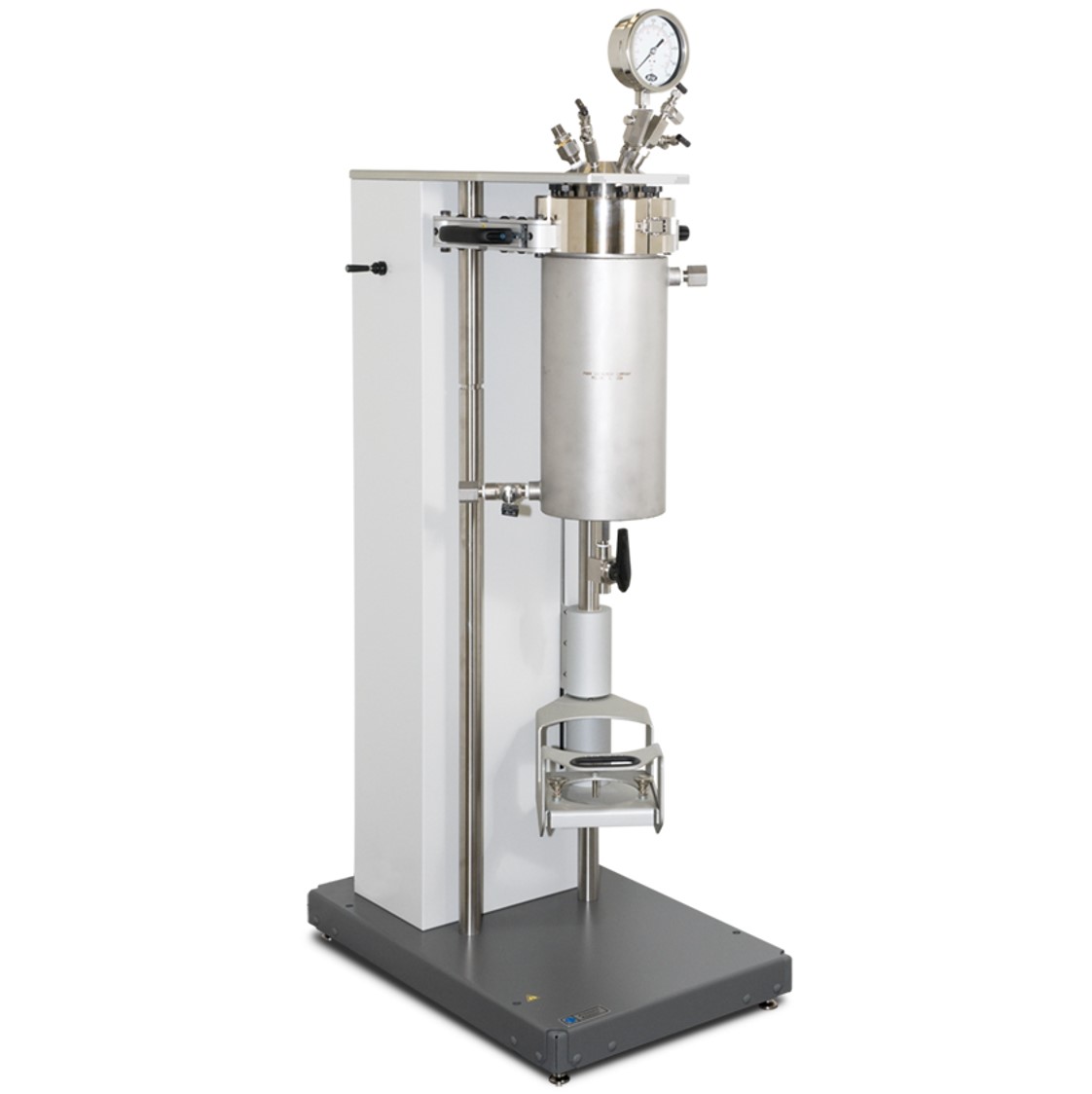

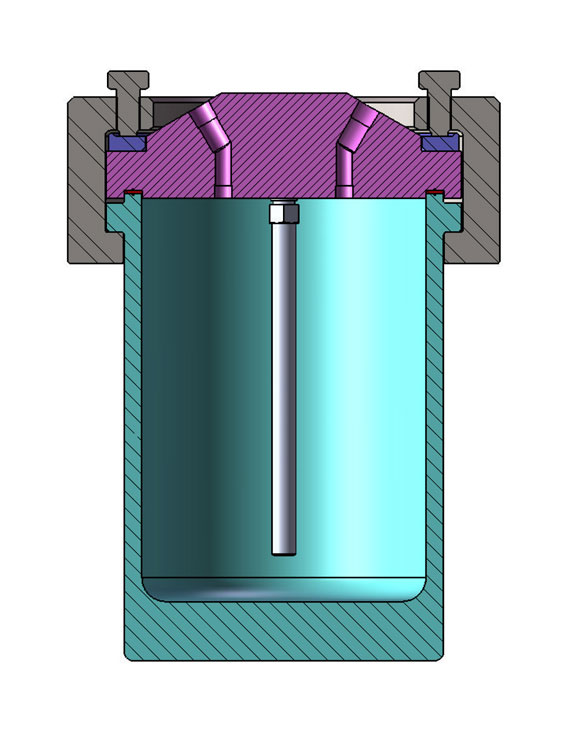

Both fixed head and moveable head designs are available. The moveable head vessels are designed so that they can be opened or closed conveniently without removing the cylinder from the heater and without auxiliary handling equipment. The split-ring cover clamp sections can be moved into place from the sides, and the compression bolts can be tightened with the vessel in place in its heater. The fixed head versions allow the head (and the connections made to it) to remain in place while the cylinder and heater are lowered with the aid of the included pneumatic lift system.
An optional bottom drain valve may be added for convenient product recovery. As with the smaller floor stand models, these larger, self-contained systems can be equipped with a variety of attachments, such as: condensers, solids charging port, bottom drain, special heaters, jacketed vessels and automatic valves and regulators. Because of the higher wattage heaters for these reactors, all models in this series require a 230 volt power supply.

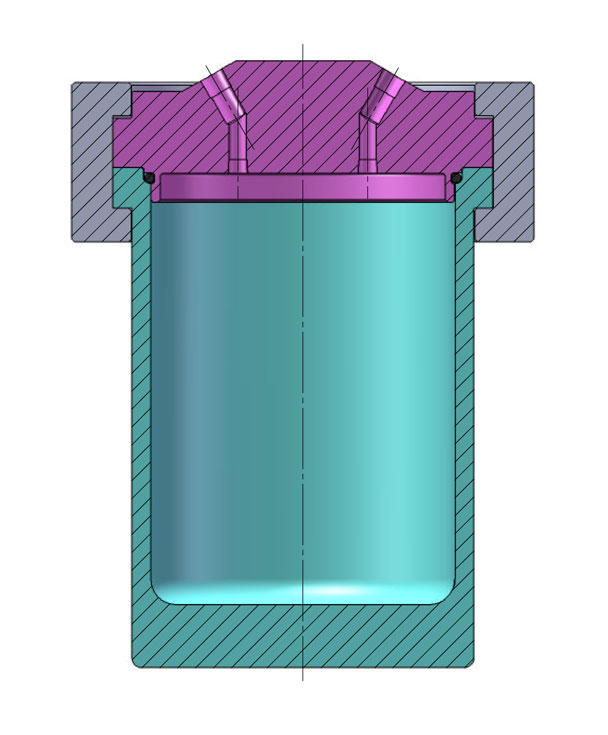

| Model Number | 4660 | |
| Approximate Volume, Gallon (Liter) | 1 (3.75) | 2 (7.99) |
| Maximum Pressure (MAWP) | 1900 psi (131 bar) | |
| Maximum Temperature | ||
| with FKM O-Ring | 225 °C | |
| with FFKM O-Ring | 300 °C | |
| with PTFE Flat Gasket | 350 °C | |
| with Flexible Graphite Flat Gasket | 350 °C | |
| Vessel Details | ||
| Mounting Style | Moveable or Fixed Head | |
| Closure | Split-Ring with 10 Compression Bolts, no Compression Bolts for O-ring) | |
| Head Opening Options | One head opening (1/4″ NPT or rupture disc assembly port) Ports for valve, gage, rupture disc, and thermowell with thermocouple (VGR) Custom port option (Contact our technical sales department to discuss options) |
|
| Maximum Head Options | 10 (Dependent on opening size, and required fittings) | |
| Valve Connections | 1/4″ NPT Female | |
| Pressure Gage, Size | 4.5″ Diameter | |
| Range | 0-2000 psi (138 bar) | |
| Temperature Measurement | Thermowell | |
| Cooling Coil (optional) | Serpentine | |
| Bottom Drain Valve (BDV) (optional) | 3/8″ NPT | |
| Stand and Heater (optional) | ||

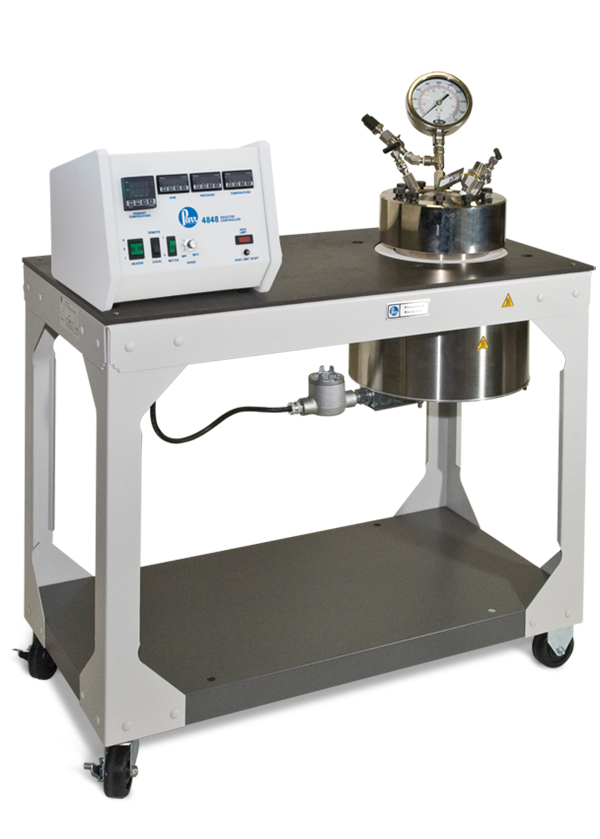

| Stand Type* | Floor Cart with heater (moveable head only) Floor Stand with Pneumatic Lift and heater (fixed head) |
|
| Heater Style, Bench Top Heater | Calrod | |
| Heater Power, Watts | 2250 | 2750 |
| Maximum Load, amps, 230V | 10 | 12 |
| *Heater watts and amps vary between different heater styles, contact Parr Technical Support for more information. | ||
| Weight & Dimensions | ||
| Cylinder I.D. x Depth, inches | 6.0 x 8.5 | 6.0 x 17.1 |
| Vessel Assembly w/ Moveable Head Weight, pounds** |
84 | 103 |
| Vessel Assembly w/ Fixed Head Weight, pounds** |
98 | 117 |
| Cylinder Weight, pounds | 33 | 52 |
| **Vessel weight is based on a vessel with VGR head fittings. Vessel weight will vary based on head configuration choice and fitting options. | ||
